For V₁(t)=20sin(wt), Vp=0.6 and V₂-6.2V. a) State which diodes (and Zener diode) are on and which are off in the appropr

[answerhappygod]

For V T 20sin Wt Vp 0 6 And V 6 2v A State Which Diodes And Zener Diode Are On And Which Are Off In The Appropr 1 (113.24 KiB) Viewed 10 times

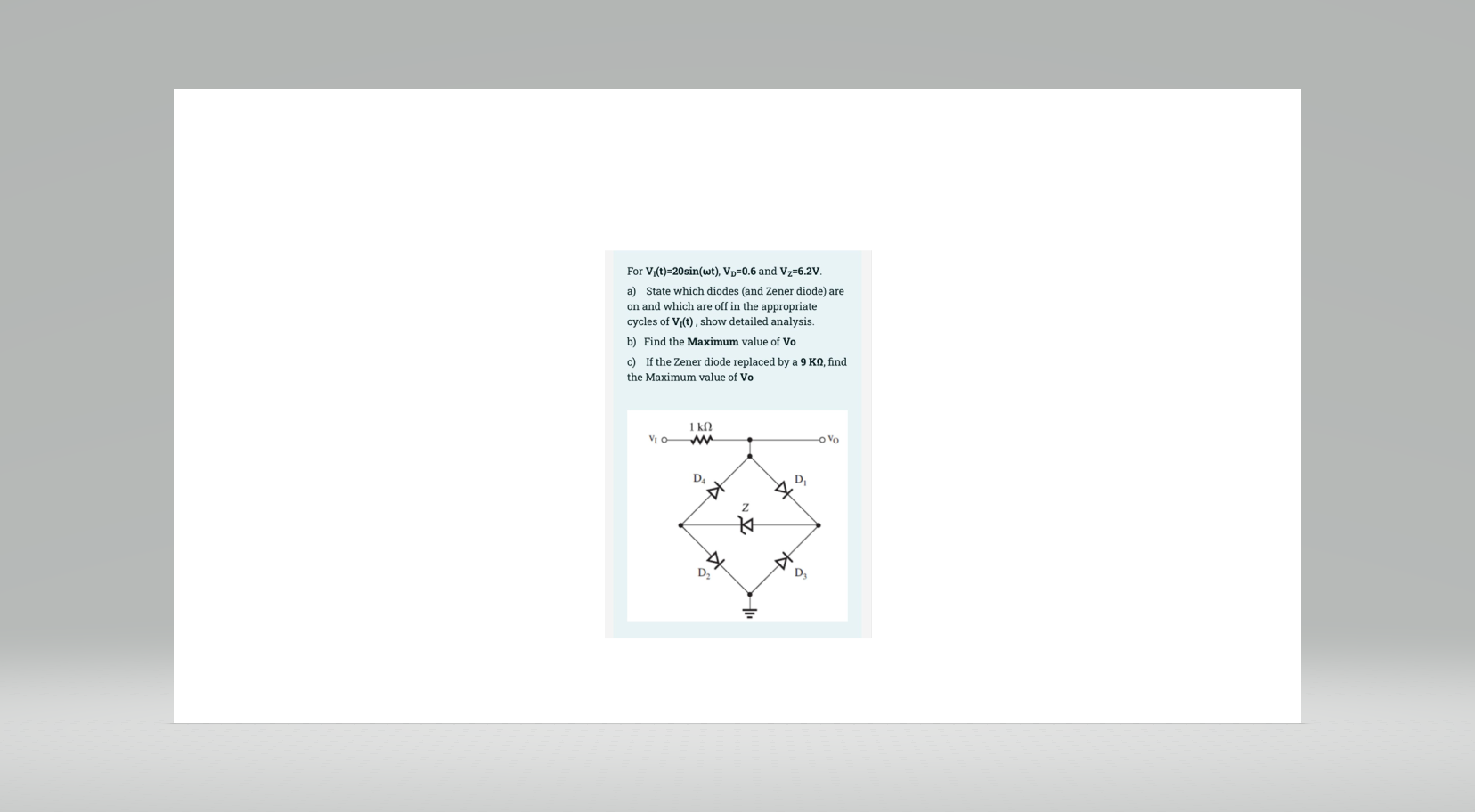

For V₁(t)=20sin(wt), Vp=0.6 and V₂-6.2V. a) State which diodes (and Zener diode) are on and which are off in the appropriate cycles of V₁(t), show detailed analysis. b) Find the Maximum value of Vo c) If the Zener diode replaced by a 9 KQ, find the Maximum value of Vo 1 kn V₁0 MM D₂ ☆ D₂ 4 D₁ D₂ -0%
