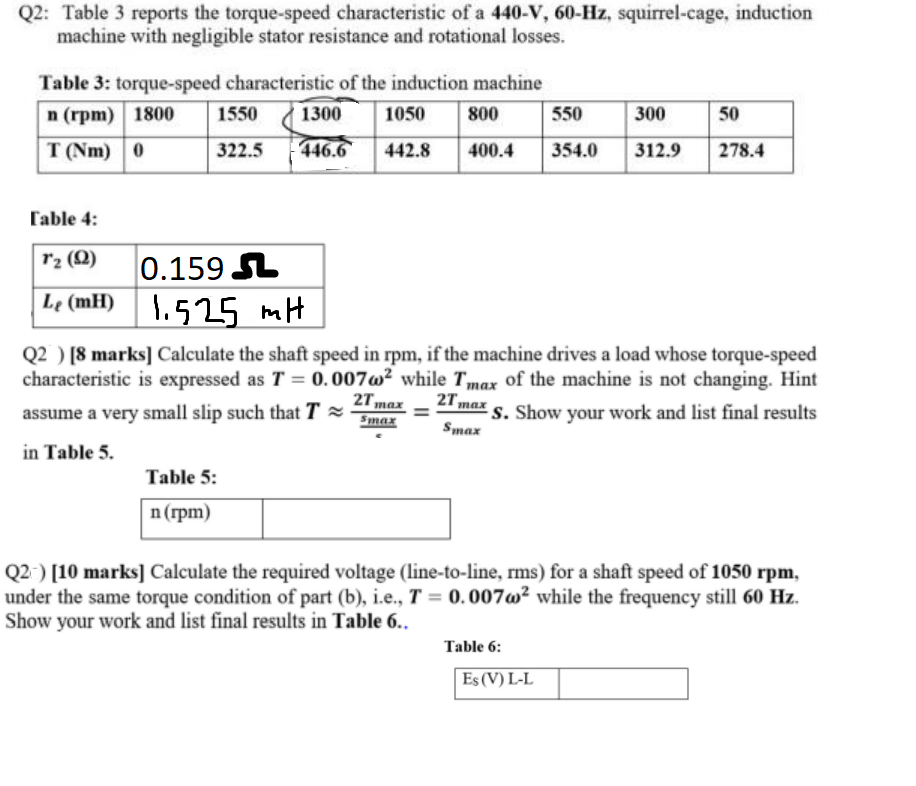

Q2: Table 3 reports the torque-speed characteristic of a 440-V, 60-Hz, squirrel-cage, induction machine with negligible

[answerhappygod]

Q2 Table 3 Reports The Torque Speed Characteristic Of A 440 V 60 Hz Squirrel Cage Induction Machine With Negligible 1 (228.71 KiB) Viewed 11 times

Q2: Table 3 reports the torque-speed characteristic of a 440-V, 60-Hz, squirrel-cage, induction machine with negligible stator resistance and rotational losses. Table 3: torque-speed characteristic of the induction machine n (rpm) 1800 1550 1300 1050 800 T (Nm) 0 322.5 [able 4: 1₂ (9) Le (mH) 550 300 50 446.6 442.8 400.4 354.0 312.9 278.4 0.159 1.525 mH Q2) [8 marks] Calculate the shaft speed in rpm, if the machine drives a load whose torque-speed characteristic is expressed as T = 0.007@² while Tmax of the machine is not changing. Hint 2T max assume a very small slip such that T s. Show your work and list final results Smax in Table 5. Table 5: n (rpm) 2Tmax Smax Q2-) [10 marks] Calculate the required voltage (line-to-line, rms) for a shaft speed of 1050 rpm, under the same torque condition of part (b), i.e., T = 0.007² while the frequency still 60 Hz. Show your work and list final results in Table 6.. Table 6: Es (V) L-L
