A single phase full-bridge thyristor rectifier is connected with inductive load. The input voltage is trapezoidal as sho

Post by answerhappygod »

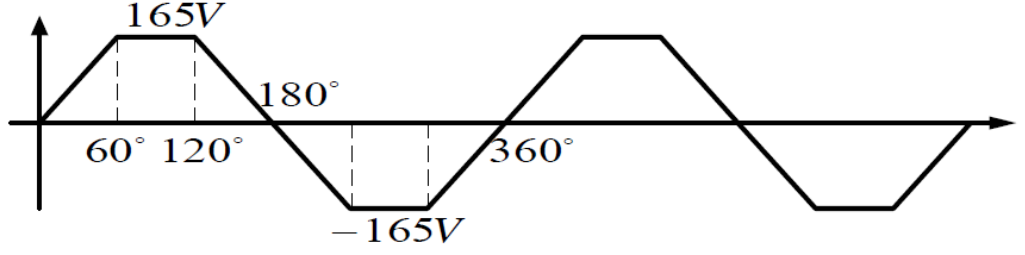

A single phase full-bridge thyristor rectifier is connected withinductive load. The input voltage is trapezoidal as shown in figurebelow. The load resistance is 10Ω. The firing angle is 30°. Assumethe load inductance is very large and devices are ideal.
a) Determine average dc voltage
b) Determine total input power
A Single Phase Full Bridge Thyristor Rectifier Is Connected With Inductive Load The Input Voltage Is Trapezoidal As Sho 1
A Single Phase Full Bridge Thyristor Rectifier Is Connected With Inductive Load The Input Voltage Is Trapezoidal As Sho 1 (41.21 KiB) Viewed 8 times
165V Ka 60° 120° 180° - 165V 360°
