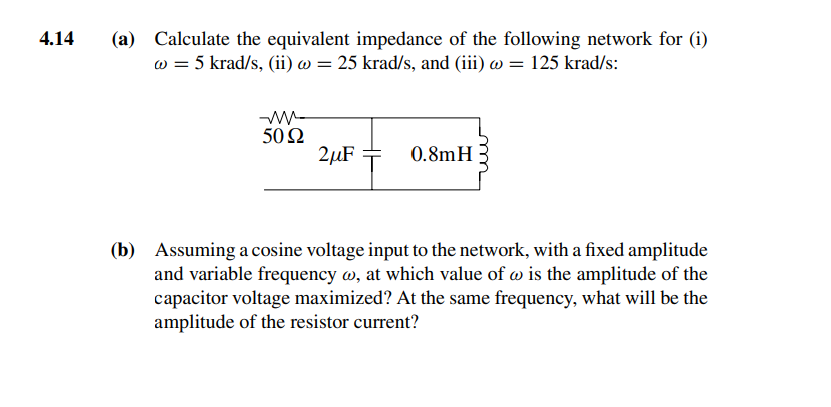

4.14 (a) Calculate the equivalent impedance of the following network for (i) w = 5 krad/s, (ii) w = 25 krad/s, and (iii) @ = 125 krad/s: ww 50 Ω 2μF 0.8mH (b) Assuming a cosine voltage input to the network, with a fixed amplitude and variable frequency w, at which value of w is the amplitude of the capacitor voltage maximized? At the same frequency, what will be the amplitude of the resistor current?
