Question 6: Implement a 4-inputs EX-OR gate using Ladder Diagram programming language. a. Include a picture of your prog

[answerhappygod]

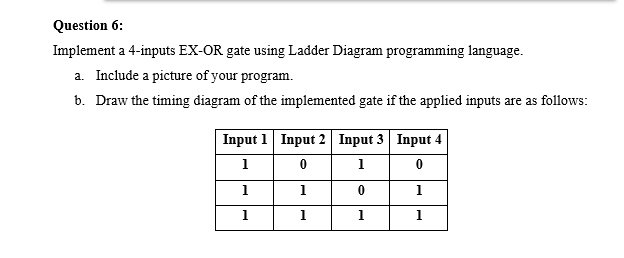

Question 6 Implement A 4 Inputs Ex Or Gate Using Ladder Diagram Programming Language A Include A Picture Of Your Prog 1 (8.87 KiB) Viewed 12 times

Question 6: Implement a 4-inputs EX-OR gate using Ladder Diagram programming language. a. Include a picture of your program. b. Draw the timing diagram of the implemented gate if the applied inputs are as follows: Input 1 Input 2 Input 3 Input 4 1 0 1 0 1 0 1 1 1 1 1 1
