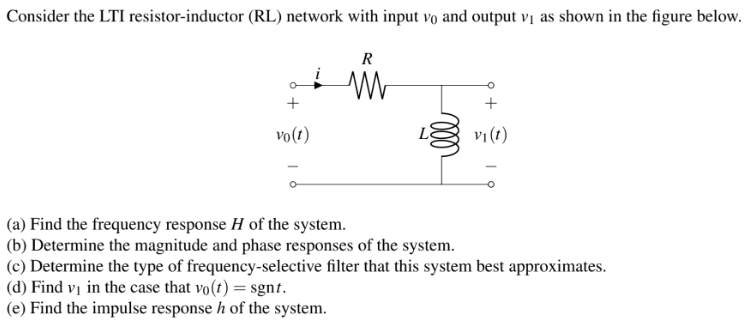

Consider the LTI resistor-inductor (RL) network with input vo and output v₁ as shown in the figure below. + vo(t) R W (a) Find the frequency response H of the system. (b) Determine the magnitude and phase responses of the system. vi(t) (c) Determine the type of frequency-selective filter that this system best approximates. (d) Find v₁ in the case that vo(t) = sgnt. (e) Find the impulse response h of the system.
