1. (2.5pt) 2-to-4 Decoder A. Formulation: input X₁, Xo; Output D3, D₂, D₁, Do B. Write down the boolean expression or tr

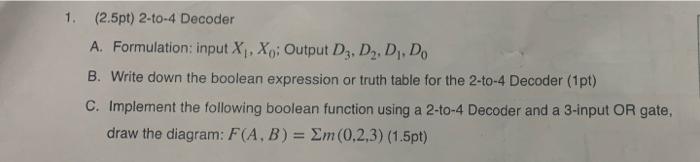

1. (2.5pt) 2-to-4 Decoder A. Formulation: input X₁, Xo; Output D3, D₂, D₁, Do B. Write down the boolean expression or truth table for the 2-to-4 Decoder (1pt) C. Implement the following boolean function using a 2-to-4 Decoder and a 3-input OR gate, draw the diagram: F(A, B) = Em (0,2,3) (1.5pt)
