What is the maximum number of solar panels you can connect in parallel for a charge controller with a maximum 100V and 3

Post by answerhappygod »

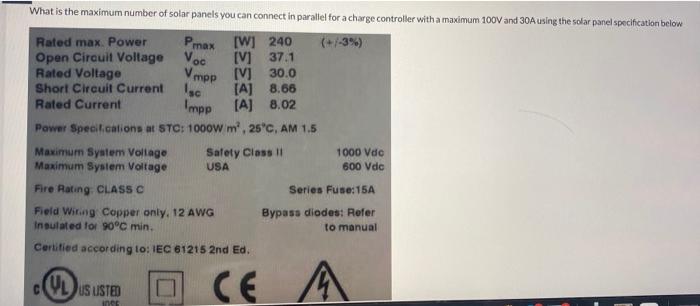

What Is The Maximum Number Of Solar Panels You Can Connect In Parallel For A Charge Controller With A Maximum 100v And 3 1
What Is The Maximum Number Of Solar Panels You Can Connect In Parallel For A Charge Controller With A Maximum 100v And 3 1 (24.7 KiB) Viewed 13 times
What is the maximum number of solar panels you can connect in parallel for a charge controller with a maximum 100V and 30A using the solar panel specification below [W] 240 [V] 37.1 [V] 30.0 [A] 8.66 Impp [A] 8.02 Power Specifications at STC: 1000W m², 25*C, AM 1.5 Rated max. Power Open Circuit Voltage Rated Voltage Short Circuit Current Rated Current (UL Pmax Voc Maximum System Voltage Maximum System Voltage Fire Rating: CLASS C Field Wiring Copper only, 12 AWG Insulated for 90°C min. Certified according to: IEC 61215 2nd Ed. US USTED 1096 Vmpp Isc Safety Class II USA 1000 Vdc 600 Vdc Series Fuse:15A Bypass diodes: Refer to manual □CE A
