Q4. Graphical Synthesis (10 points) Design a four-bar linkage to move line PQ on its ROCKER through the two extreme posi

Post by answerhappygod »

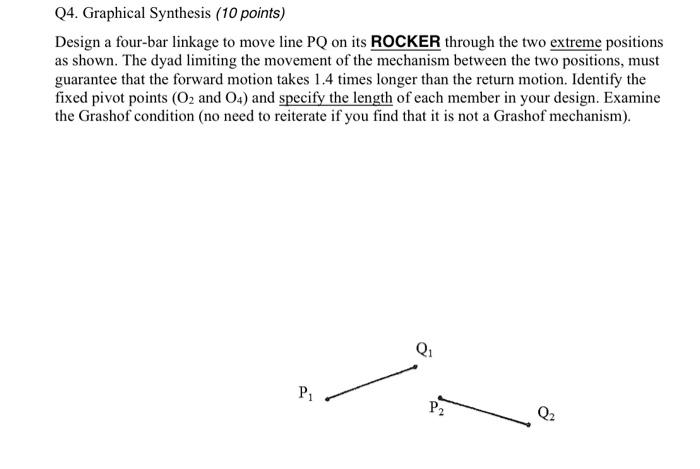

Q4 Graphical Synthesis 10 Points Design A Four Bar Linkage To Move Line Pq On Its Rocker Through The Two Extreme Posi 1
Q4 Graphical Synthesis 10 Points Design A Four Bar Linkage To Move Line Pq On Its Rocker Through The Two Extreme Posi 1 (31.07 KiB) Viewed 15 times
Q4. Graphical Synthesis (10 points) Design a four-bar linkage to move line PQ on its ROCKER through the two extreme positions as shown. The dyad limiting the movement of the mechanism between the two positions, must guarantee that the forward motion takes 1.4 times longer than the return motion. Identify the fixed pivot points (O₂ and O4) and specify the length of each member in your design. Examine the Grashof condition (no need to reiterate if you find that it is not a Grashof mechanism). P₁ P2 Q₂
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
