A cantilever beam built up from two channel shapes, each C 200 x 17.1 and of length L, supports an inclined load P at it

[answerhappygod]

A Cantilever Beam Built Up From Two Channel Shapes Each C 200 X 17 1 And Of Length L Supports An Inclined Load P At It 1 (98.89 KiB) Viewed 10 times

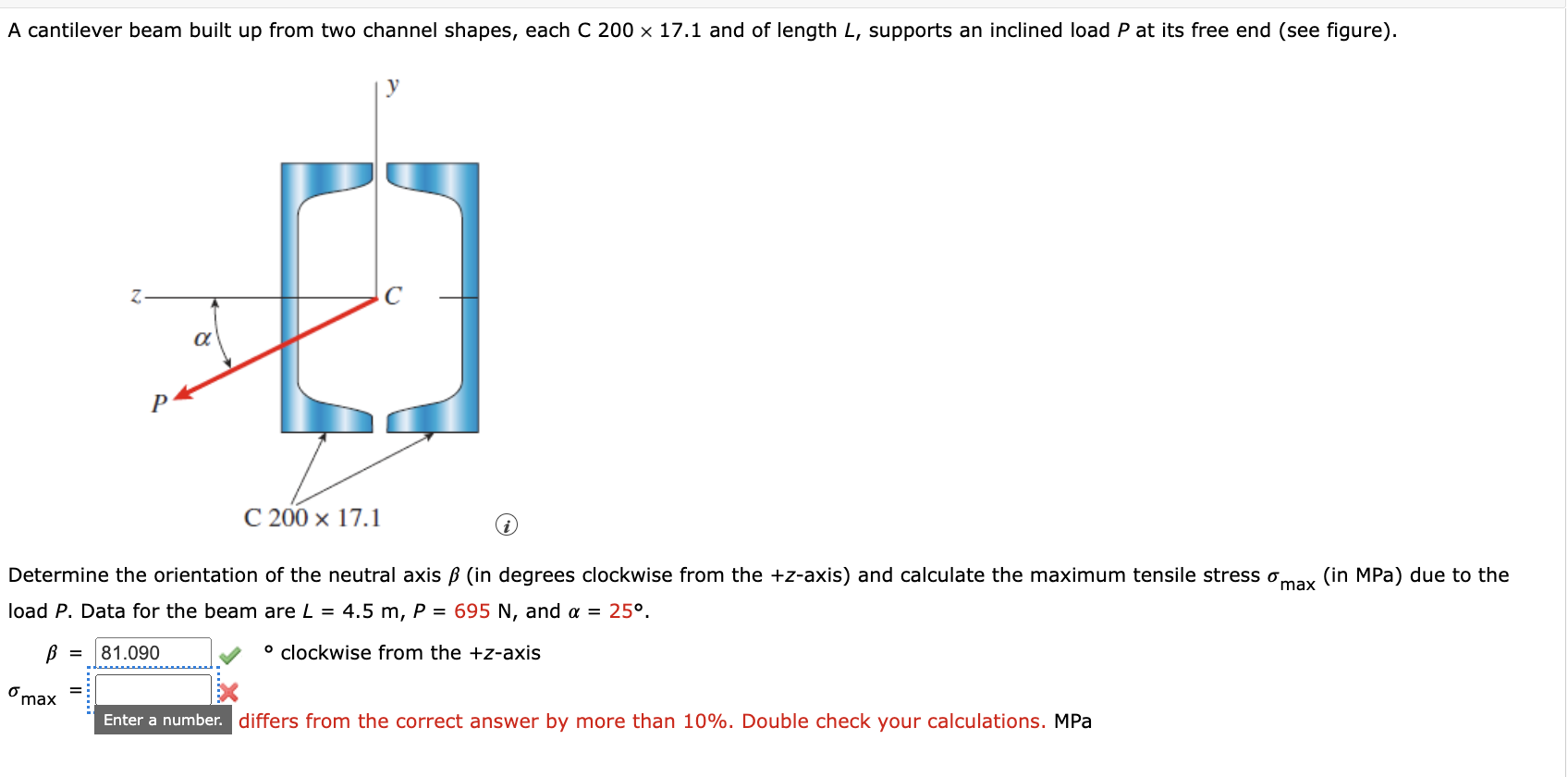

A cantilever beam built up from two channel shapes, each C 200 x 17.1 and of length L, supports an inclined load P at its free end (see figure). max Z = P α Determine the orientation of the neutral axis ß (in degrees clockwise from the +z-axis) and calculate the maximum tensile stress max (in MPa) due to the load P. Data for the beam are L = 4.5 m, P = 695 N, and a = 25°. 81.090 ° clockwise from the +z-axis C 200 x 17.1 Enter a number. differs from the correct answer by more than 10%. Double check your calculations. MPa
