Q5 2 The Simple Beam Is Supported By A Roller At Point A And A Pin At Point B It Is Subjected To A Concentrated Force 1 (38.57 KiB) Viewed 15 times
I need answer ASAP!!! You might have seen a similar problem already on answers. DONOT copy it thinking it is right as it contains differentvalues and dimensions.Also, I need final answer in the unit of mm!!

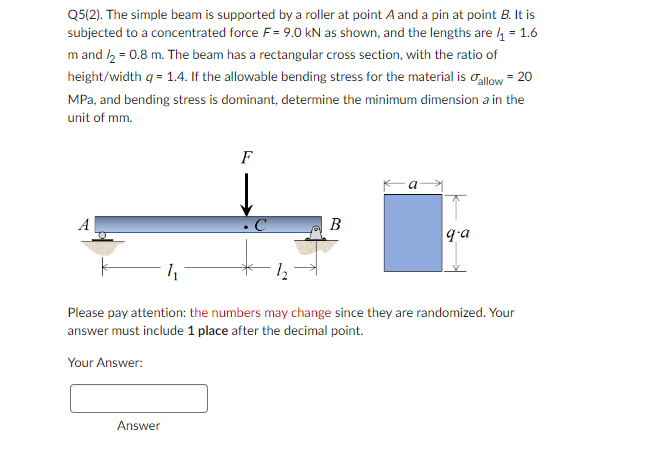

Q5(2). The simple beam is supported by a roller at point A and a pin at point B. It is subjected to a concentrated force F = 9.0 kN as shown, and the lengths are /₁ = 1.6 m and /2 = 0.8 m. The beam has a rectangular cross section, with the ratio of height/width q = 1.4. If the allowable bending stress for the material is allow = 20 MPa, and bending stress is dominant, determine the minimum dimension a in the unit of mm. F Answer с B q-a 1₁ Please pay attention: the numbers may change since they are randomized. Your answer must include 1 place after the decimal point. Your Answer:
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
