Question 4 (1 point) Listen Q2(2). The state of plane strain at a point has components of x = 526 x 10-6, €y = -290 x 10

[answerhappygod]

Question 4 1 Point Listen Q2 2 The State Of Plane Strain At A Point Has Components Of X 526 X 10 6 Y 290 X 10 1 (46.59 KiB) Viewed 13 times

I need answer ASAP!!! You might have seen a similar problem already on answers. DO NOT copyit thinking it is right as it contains different values anddimensions.Also, only use Mohr's Circle, and I needfinal answer in the form of in x10-6

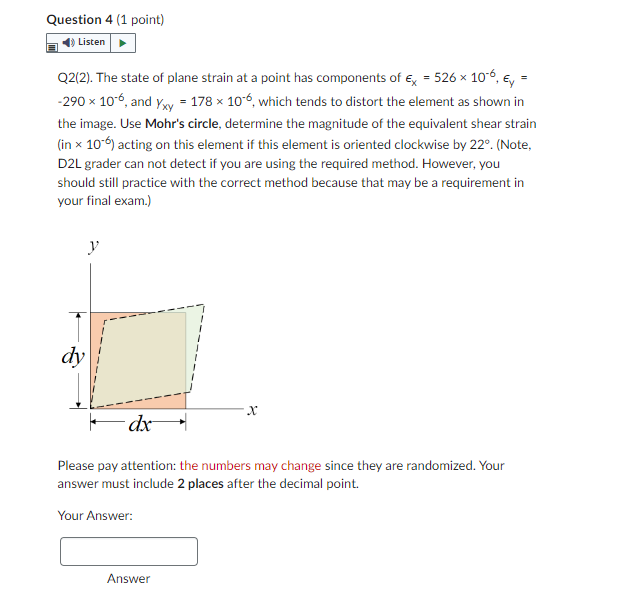

Question 4 (1 point) Listen Q2(2). The state of plane strain at a point has components of x = 526 x 10-6, €y = -290 x 10-6, and Yxy = 178 x 106, which tends to distort the element as shown in the image. Use Mohr's circle, determine the magnitude of the equivalent shear strain (in x 10-6) acting on this element if this element is oriented clockwise by 22°. (Note, D2L grader can not detect if you are using the required method. However, you should still practice with the correct method because that may be a requirement in your final exam.) y dy dx Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point. Your Answer: Answer
