Question 10 1 Point Listen Q3 2 The State Of Stress At A Point In A Member Is Shown On The Element With Ox 23 Mpa 1 (43.47 KiB) Viewed 9 times

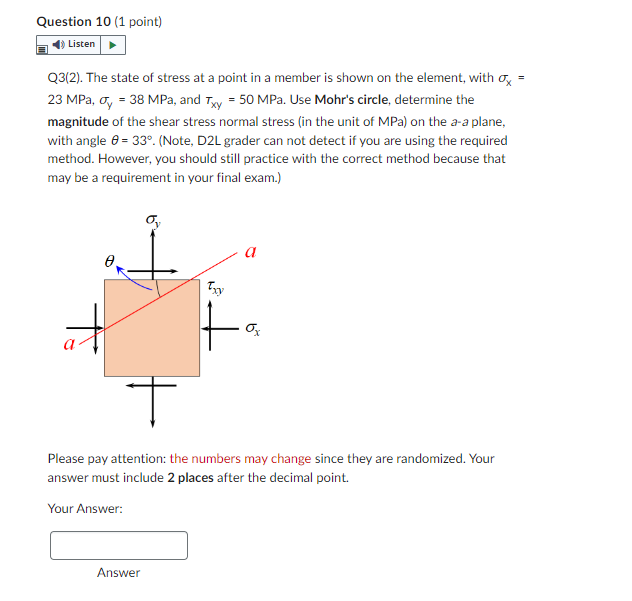

I need answer ASAP!!! You might have seen a similar problem already on answers. DONOT copy it thinking it is right as it contains differentvalues and dimensions.Also, I need final answer in MPa, and only useMohr's Circle!! Question 10 (1 point) Listen = Q3(2). The state of stress at a point in a member is shown on the element, with ox 23 MPa, σy = 38 MPa, and Txy = 50 MPa. Use Mohr's circle, determine the magnitude of the shear stress normal stress (in the unit of MPa) on the a-a plane, with angle 8 = 33°. (Note, D2L grader can not detect if you are using the required method. However, you should still practice with the correct method because that may be a requirement in your final exam.) at Txy Answer ox + Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point. Your Answer:
