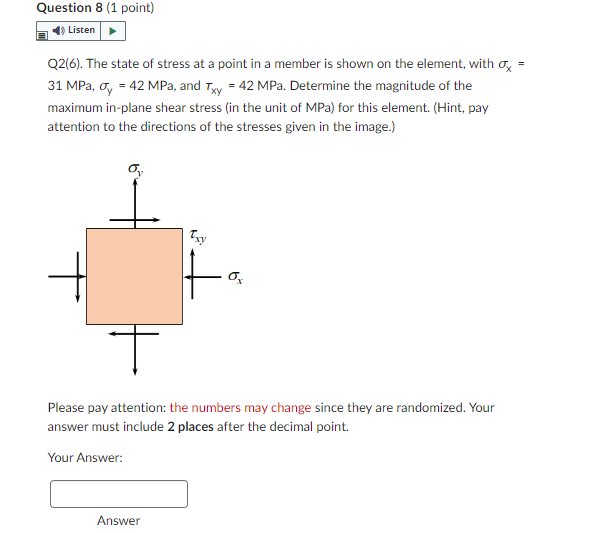

Question 8 1 Point Listen Q2 6 The State Of Stress At A Point In A Member Is Shown On The Element With Ox 31 Mpa 1 (32.56 KiB) Viewed 12 times
I need answer ASAP!!! You might have seen a similar problem already on answers. DO NOT copyit thinking it is right as it contains different values anddimensions.Also, I need final answer in degrees!!! Question 8 (1 point) Listen = Q2(6). The state of stress at a point in a member is shown on the element, with ox 31 MPa, σy = 42 MPa, and Txy = 42 MPa. Determine the magnitude of the maximum in-plane shear stress (in the unit of MPa) for this element. (Hint, pay attention to the directions of the stresses given in the image.) 十 ox T Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point. Your Answer: Answer
