A thin polymer plate PQR is deformed such that corner Q is displaced downward 0.0650-in. to new position Q' as shown in

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

A thin polymer plate PQR is deformed such that corner Q is displaced downward 0.0650-in. to new position Q' as shown in

Post by answerhappygod »

A Thin Polymer Plate Pqr Is Deformed Such That Corner Q Is Displaced Downward 0 0650 In To New Position Q As Shown In 1
A Thin Polymer Plate Pqr Is Deformed Such That Corner Q Is Displaced Downward 0 0650 In To New Position Q As Shown In 1 (102.34 KiB) Viewed 11 times

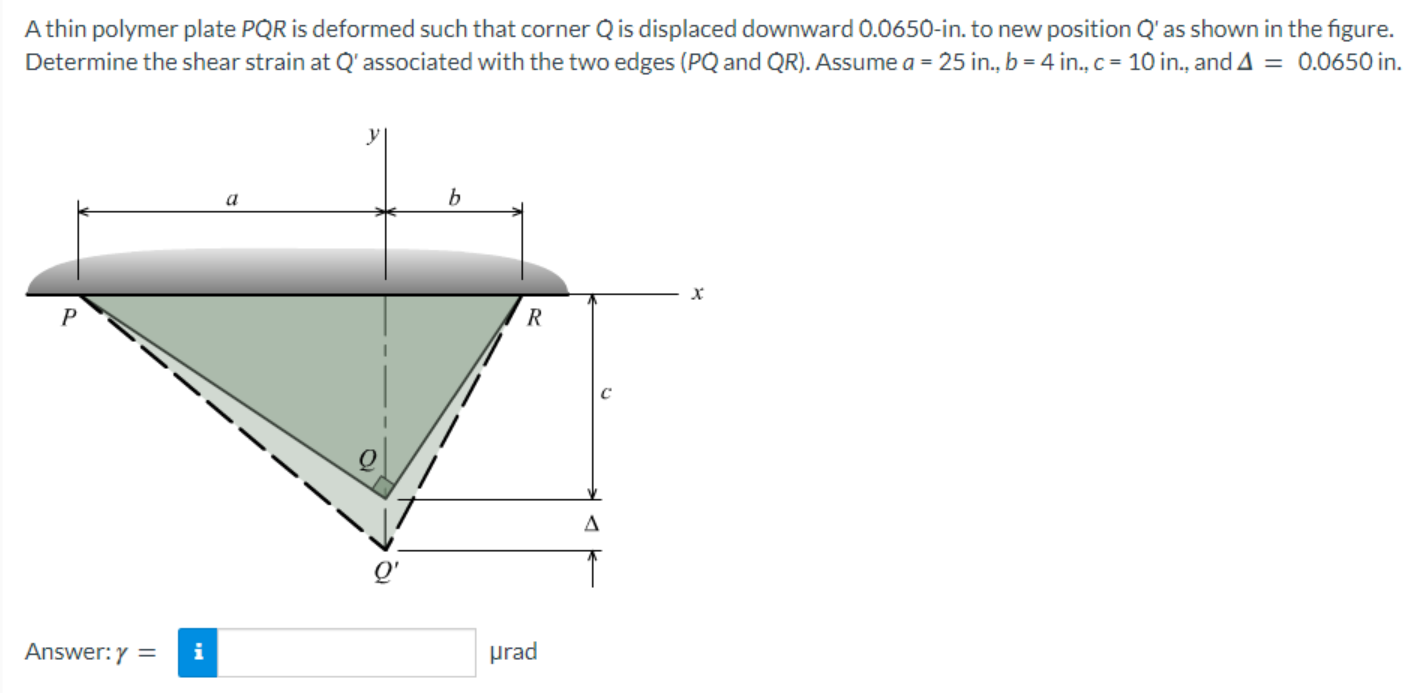

A thin polymer plate PQR is deformed such that corner Q is displaced downward 0.0650-in. to new position Q' as shown in the figure. Determine the shear strain at Q' associated with the two edges (PQ and QR). Assume a = 25 in., b = 4 in., c = 10 in., and A = 0.0650 in. P Answer: y = i a Q' b R urad A X
