Question 13 The circuit shown has two resistors. One is 12 Ohms and the other is 18 Ohms. The voltmeter (V)reads 9 Volts

Post by answerhappygod »

Question 13 The Circuit Shown Has Two Resistors One Is 12 Ohms And The Other Is 18 Ohms The Voltmeter V Reads 9 Volts 1
Question 13 The Circuit Shown Has Two Resistors One Is 12 Ohms And The Other Is 18 Ohms The Voltmeter V Reads 9 Volts 1 (195.99 KiB) Viewed 41 times

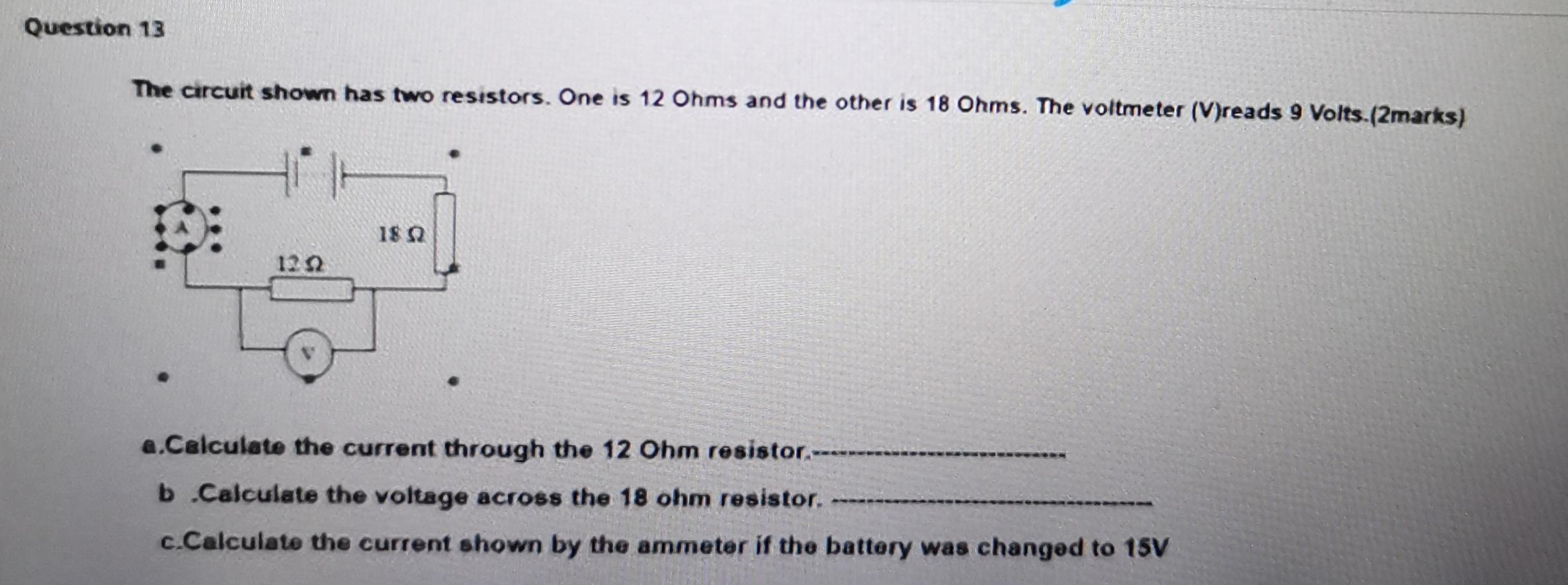

Question 13 The circuit shown has two resistors. One is 12 Ohms and the other is 18 Ohms. The voltmeter (V)reads 9 Volts.(2marks) 18 R2 112 a.Calculate the current through the 12 Ohm resistor.- b Calculate the voltage across the 18 ohm resistor. c.Calculate the current shown by the ammeter if the battery was changed to 15V
