Student Ne Nume (Chinese) Q1 ) Calculate the reactions at the supports A and E. b) Draw the shear force diagram c) Draw

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Student Ne Nume (Chinese) Q1 ) Calculate the reactions at the supports A and E. b) Draw the shear force diagram c) Draw

Post by answerhappygod »

Student Ne Nume Chinese Q1 Calculate The Reactions At The Supports A And E B Draw The Shear Force Diagram C Draw 1
Student Ne Nume Chinese Q1 Calculate The Reactions At The Supports A And E B Draw The Shear Force Diagram C Draw 1 (20.24 KiB) Viewed 24 times

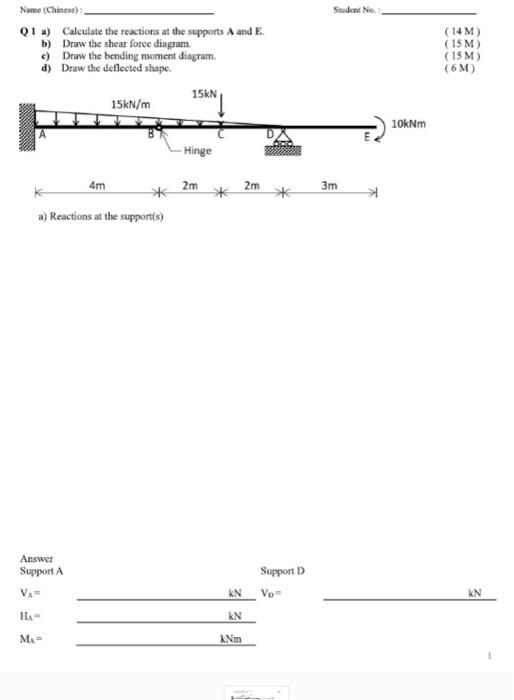

Student Ne Nume (Chinese) Q1 ) Calculate the reactions at the supports A and E. b) Draw the shear force diagram c) Draw the bending moment diagram. d) Draw the deflected shape. 15kN 15kN/m (14M) (15 M) (15M) (6M) 10km Hinge 4m 2m 2m 3m a) Reactions at the support(s) Answer Support A VA Support D KN Vo KN KN HA- MA= KNm
