A truth table with three inputs, x, y, and z, and three outputs that represent Boolean functions (F1, F2, and F3). Add o

[answerhappygod]

A Truth Table With Three Inputs X Y And Z And Three Outputs That Represent Boolean Functions F1 F2 And F3 Add O 1 (39.96 KiB) Viewed 16 times

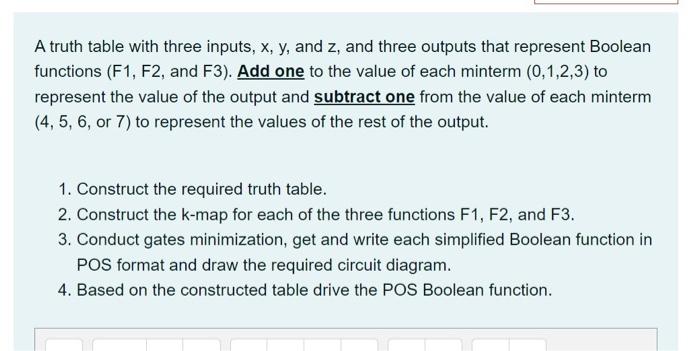

A truth table with three inputs, x, y, and z, and three outputs that represent Boolean functions (F1, F2, and F3). Add one to the value of each minterm (0,1,2,3) to represent the value of the output and subtract one from the value of each minterm (4, 5, 6, or 7) to represent the values of the rest of the output. 1. Construct the required truth table. 2. Construct the k-map for each of the three functions F1, F2, and F3. 3. Conduct gates minimization, get and write each simplified Boolean function in POS format and draw the required circuit diagram. 4. Based on the constructed table drive the POS Boolean function.
