Example (Binary distillation) A continuous fractionating column operating at atmospheric pressure, is to be designed to

[answerhappygod]

Example Binary Distillation A Continuous Fractionating Column Operating At Atmospheric Pressure Is To Be Designed To 1 (170.6 KiB) Viewed 41 times

please solve it by typing if possible, if not, make your handwriting clear.
Thanks.

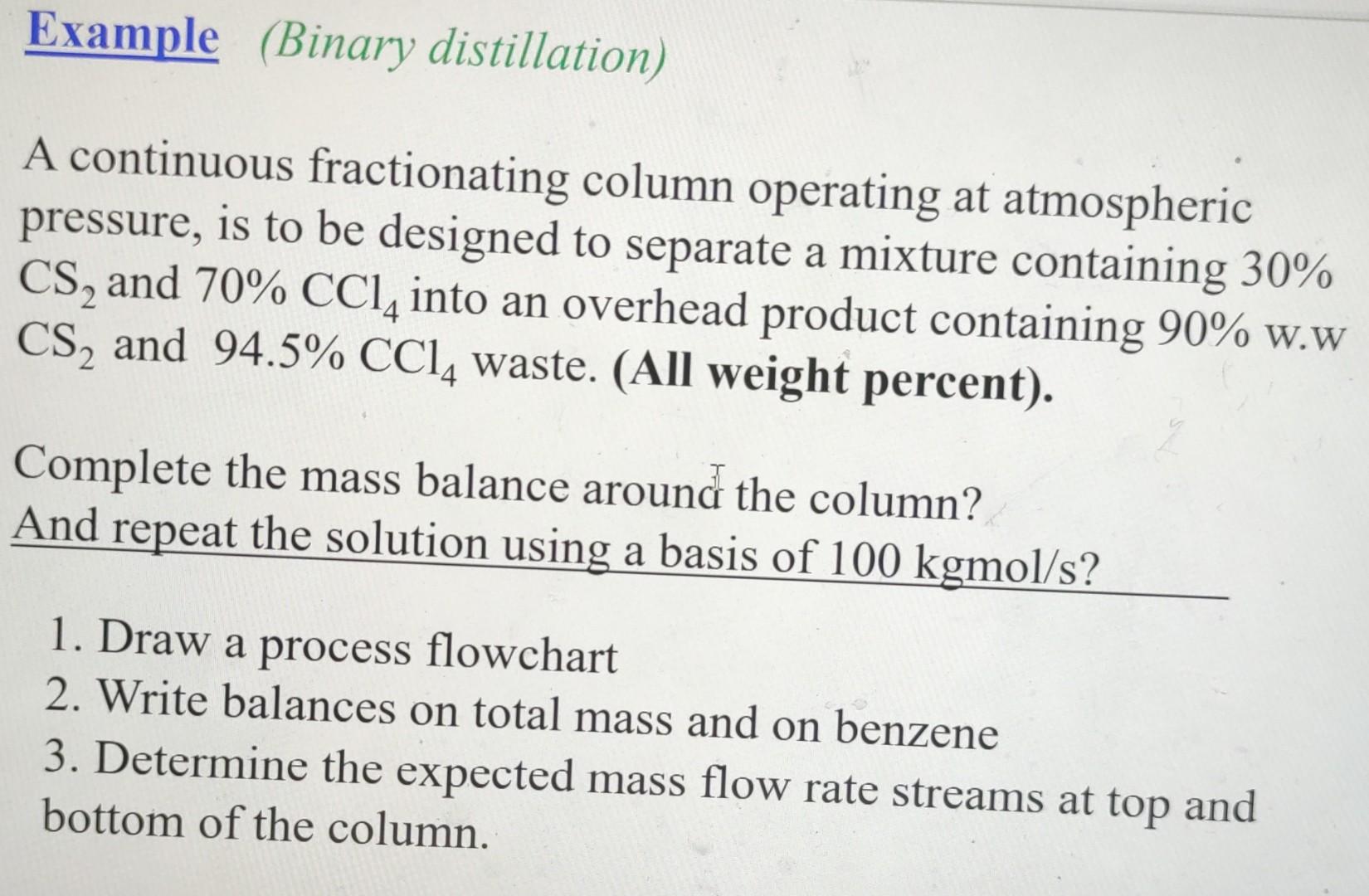

Example (Binary distillation) A continuous fractionating column operating at atmospheric pressure, is to be designed to separate a mixture containing 30% CSand 70% CCl, into an overhead product containing 90% w.w CS, and 94.5% CC14 waste. (All weight percent). Complete the mass balance around the column? And repeat the solution using a basis of 100 kgmol/s? a 1. Draw a process flowchart 2. Write balances on total mass and on benzene 3. Determine the expected mass flow rate streams at top and bottom of the column.
