Problem#3 (20 pts). The solid shaft is fixed to the support at Cand subjected to the torsional loadings and axial load P

[answerhappygod]

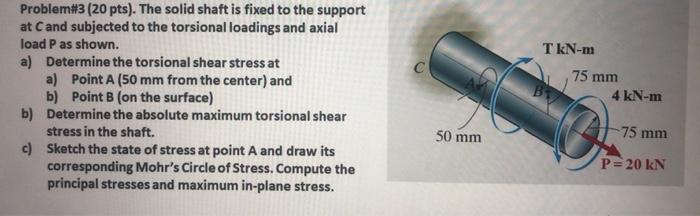

Problem 3 20 Pts The Solid Shaft Is Fixed To The Support At Cand Subjected To The Torsional Loadings And Axial Load P 1 (26.91 KiB) Viewed 21 times

Problem#3 (20 pts). The solid shaft is fixed to the support at Cand subjected to the torsional loadings and axial load P as shown. a) Determine the torsional shear stress at a) Point A (50 mm from the center) and b) Point B (on the surface) Determine the absolute maximum torsional shear stress in the shaft. Sketch the state of stress at point A and draw its corresponding Mohr's Circle of Stress. Compute the principal stresses and maximum in-plane stress. b) c) 50 mm TkN-m 75 mm O 4 kN-m 75 mm P = 20 kN
