A force P = 75 kN is applied at the plate-bolt connection shown. Determine the required diameter in mm (2 decimals) of t

Post by answerhappygod »

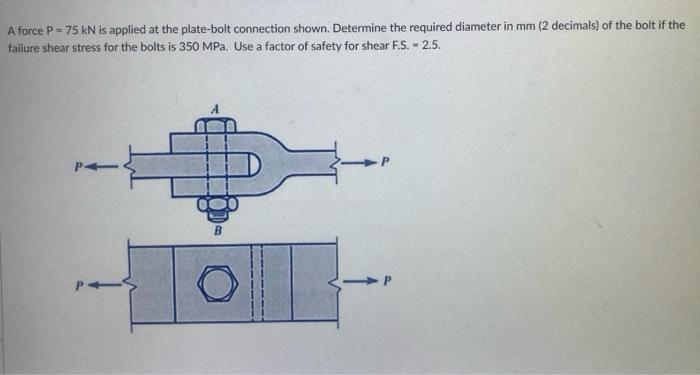

A Force P 75 Kn Is Applied At The Plate Bolt Connection Shown Determine The Required Diameter In Mm 2 Decimals Of T 1
A Force P 75 Kn Is Applied At The Plate Bolt Connection Shown Determine The Required Diameter In Mm 2 Decimals Of T 1 (24.85 KiB) Viewed 26 times
A force P = 75 kN is applied at the plate-bolt connection shown. Determine the required diameter in mm (2 decimals) of the bolt if the failure shear stress for the bolts is 350 MPa. Use a factor of safety for shear F.S. - 2.5. B O
