A force-couple system is acting on the frame as shown. Use A-80N, B-700N, C=150N, and M= 120N.m. The system is to be rep

[answerhappygod]

A Force Couple System Is Acting On The Frame As Shown Use A 80n B 700n C 150n And M 120n M The System Is To Be Rep 1 (42.36 KiB) Viewed 11 times

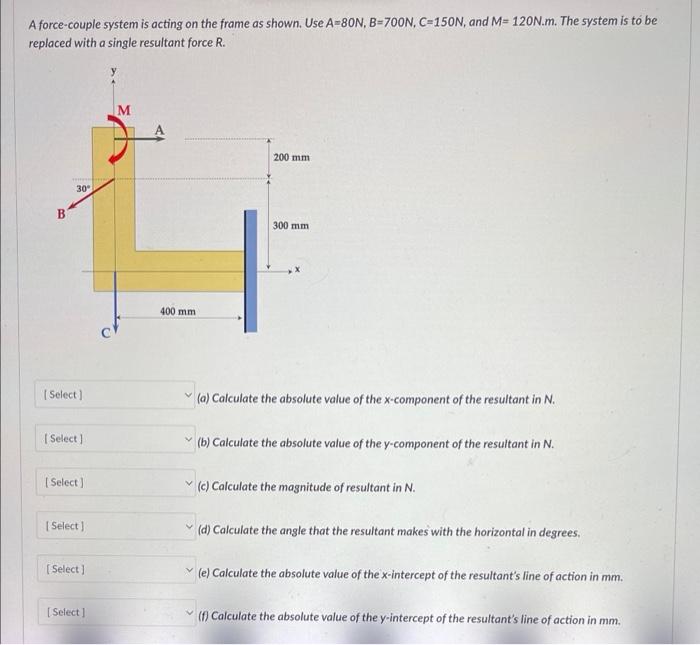

A force-couple system is acting on the frame as shown. Use A-80N, B-700N, C=150N, and M= 120N.m. The system is to be replaced with a single resultant force R. B 30° [Select] [Select] [Select] [Select] [Select] [Select] M 400 mm 200 mm 300 mm (a) Calculate the absolute value of the x-component of the resultant in N. (b) Calculate the absolute value of the y-component of the resultant in N. Y (c) Calculate the magnitude of resultant in N. (d) Calculate the angle that the resultant makes with the horizontal in degrees. ✓(e) Calculate the absolute value of the x-intercept of the resultant's line of action in mm. (f) Calculate the absolute value of the y-intercept of the resultant's line of action in mm.
