2. In which of these three arrangements (A, B, or C) of a disc magnet and an iOlab would the iOLab measure a Bx magentic

[answerhappygod]

2 In Which Of These Three Arrangements A B Or C Of A Disc Magnet And An Iolab Would The Iolab Measure A Bx Magentic 1 (65.31 KiB) Viewed 19 times

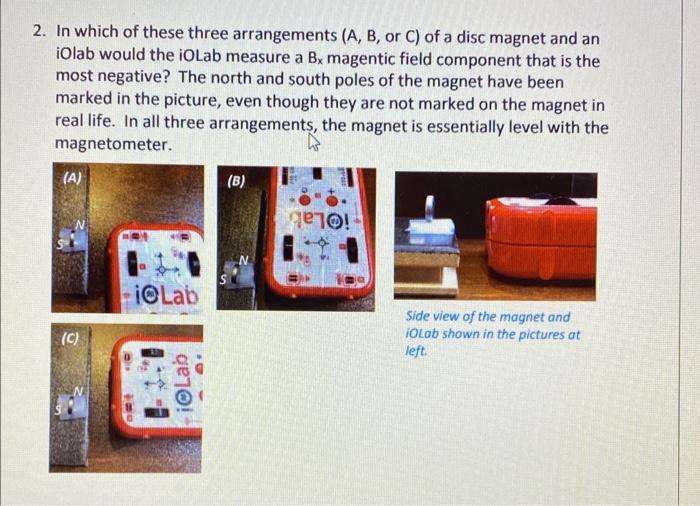

2. In which of these three arrangements (A, B, or C) of a disc magnet and an iOlab would the iOLab measure a Bx magentic field component that is the most negative? The north and south poles of the magnet have been marked in the picture, even though they are not marked on the magnet in real life. In all three arrangements, the magnet is essentially level with the magnetometer. (A) (C) iOLab iⒸLab (B) 10! Side view of the magnet and iOLab shown in the pictures at left.
