1. A parallel-plate capacitor is made from two plates 12.0 cm on each side and 4.50 mm apart. Half of the space between

[answerhappygod]

1 A Parallel Plate Capacitor Is Made From Two Plates 12 0 Cm On Each Side And 4 50 Mm Apart Half Of The Space Between 1 (46.74 KiB) Viewed 21 times

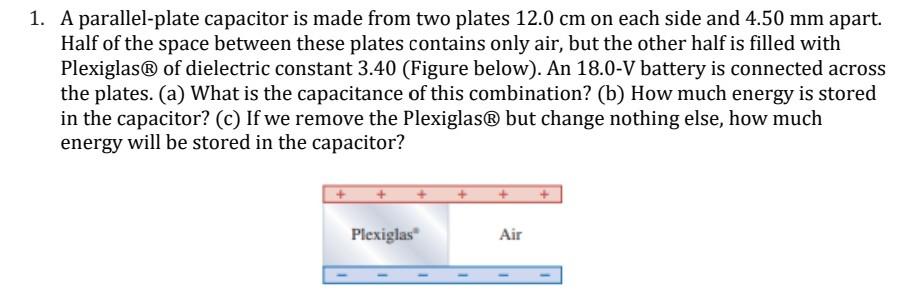

1. A parallel-plate capacitor is made from two plates 12.0 cm on each side and 4.50 mm apart. Half of the space between these plates contains only air, but the other half is filled with Plexiglas® of dielectric constant 3.40 (Figure below). An 18.0-V battery is connected across the plates. (a) What is the capacitance of this combination? (b) How much energy is stored in the capacitor? (c) If we remove the Plexiglas® but change nothing else, how much energy will be stored in the capacitor? Plexiglas Air +
