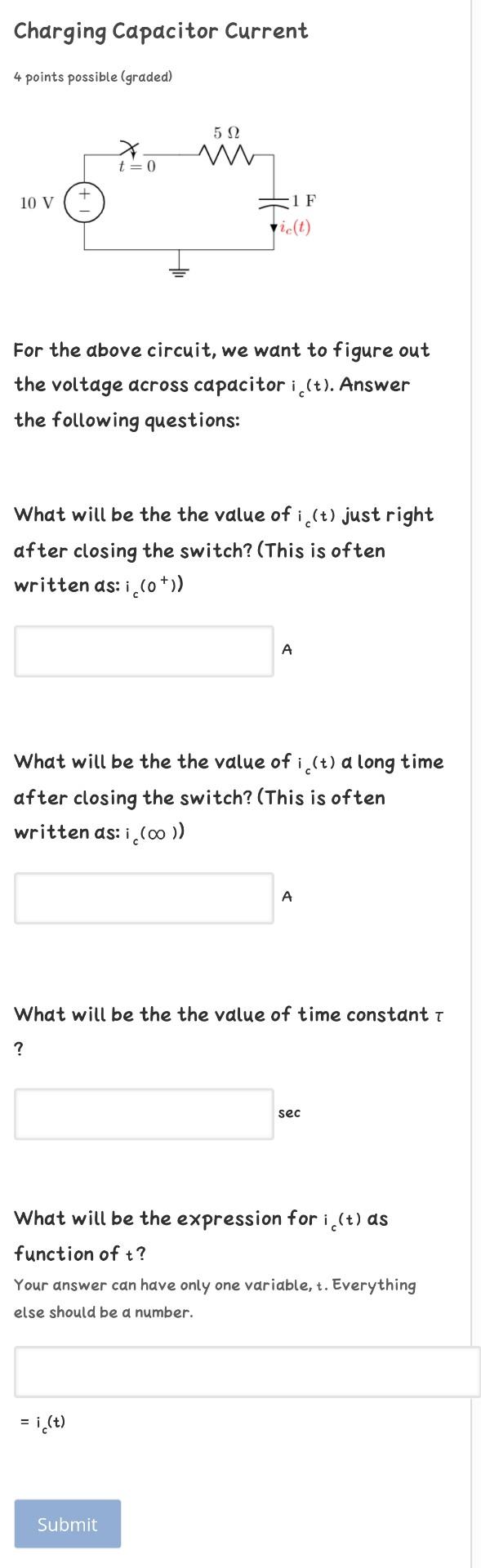

Charging Capacitor Current 4 points possible (graded) 5 12 x t=0 10 V 1 F rict) For the above circuit, we want to figure out the voltage across capacitor i(t). Answer the following questions: What will be the the value of i(t) just right after closing the switch? (This is often written as: 1 (0+)) А What will be the the value of i(t) a long time after closing the switch? (This is often written as: 1.100) А What will be the the value of time constant t ? sec What will be the expression for i(t) as function of t? Your answer can have only one variable, t. Everything else should be a number. = i(t) Submit

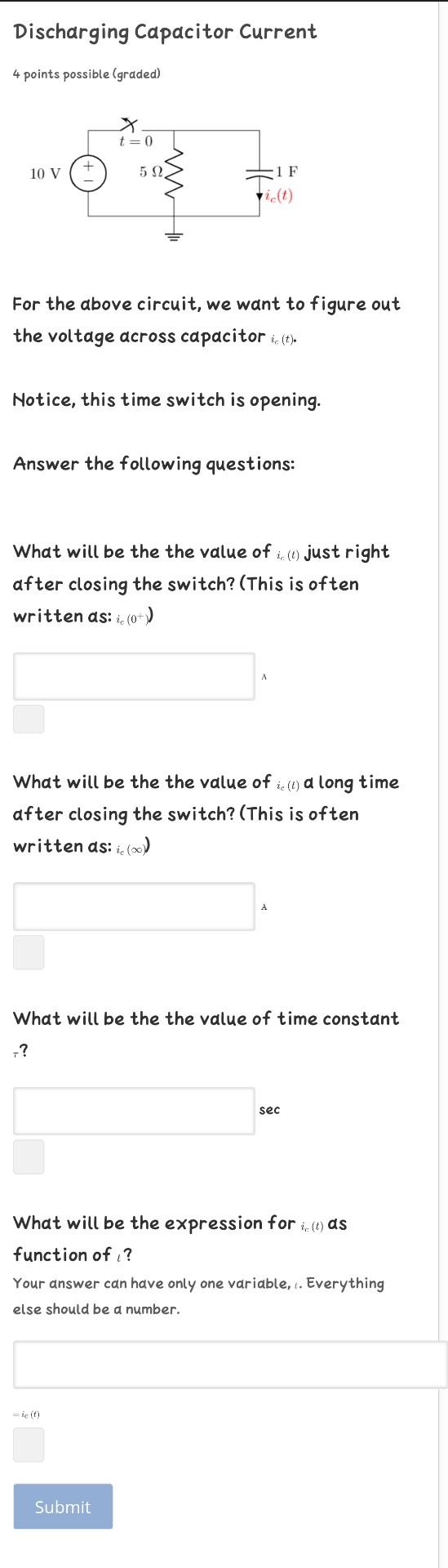

Discharging Capacitor Current 4 points possible (graded) t=0 10 V 5 Ω. 1F ict) For the above circuit, we want to figure out the voltage across capacitor (t). Notice, this time switch is opening. Answer the following questions: What will be the the value of in () just right after closing the switch? (This is often written as: ie(0) What will be the the value of ic(l) a long time after closing the switch? (This is often written as: ic (0) A What will be the the value of time constant ? sec (t) as What will be the expression for function of ? Your answer can have only one variable, . Everything else should be a number. =icit) Submit
