5-6. The capacitors below were initially completely discharged at t=0. From t=0 to t=9, the switch below moved from A to

Post by answerhappygod »

5 6 The Capacitors Below Were Initially Completely Discharged At T 0 From T 0 To T 9 The Switch Below Moved From A To 1
5 6 The Capacitors Below Were Initially Completely Discharged At T 0 From T 0 To T 9 The Switch Below Moved From A To 1 (75.14 KiB) Viewed 15 times

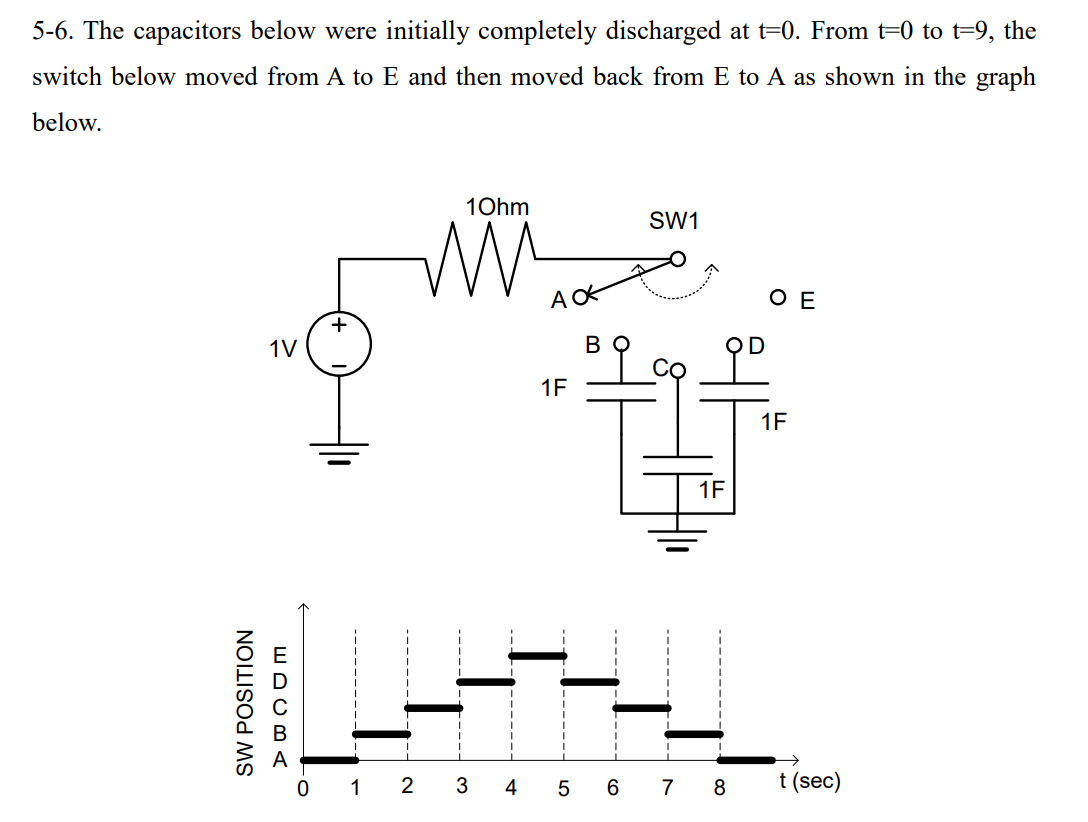

5-6. The capacitors below were initially completely discharged at t=0. From t=0 to t=9, the switch below moved from A to E and then moved back from E to A as shown in the graph below. 1 Ohm SW1 m AOK OE 1V B 1F 1F 1F 1 2 3 4 5 6 7 8 t(sec)
5. Plot VB(t), Vc(t), and Vo(t) for (0 st = 9) [sec]. [1] 6. What is the total energy stored in the three capacitors when t = 9[sec]? [1]
