This is for my Statics Subject.
Please make sure that the FBD diagrams are readable.
This Is For My Statics Subject Please Make Sure That The Fbd Diagrams Are Readable 1
This Is For My Statics Subject Please Make Sure That The Fbd Diagrams Are Readable 1 (20.79 KiB) Viewed 21 times

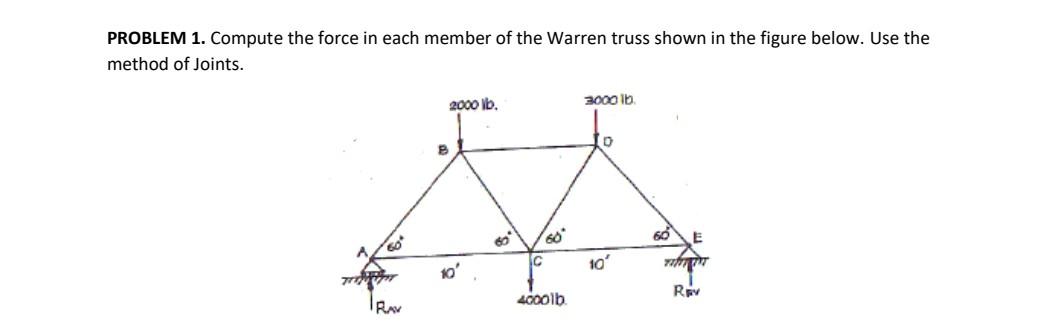

PROBLEM 1. Compute the force in each member of the Warren truss shown in the figure below. Use the method of Joints. 2000 lb. 3000 lb B 60 60 60 E IC 10' याप 10' समेत Rav TRAV 4000lb
