The following figure shows a pump impeller transmits a power of 20 kW at 2500 RPM. The impeller has a weight of 60 kg. T

Post by answerhappygod »

The Following Figure Shows A Pump Impeller Transmits A Power Of 20 Kw At 2500 Rpm The Impeller Has A Weight Of 60 Kg T 1
The Following Figure Shows A Pump Impeller Transmits A Power Of 20 Kw At 2500 Rpm The Impeller Has A Weight Of 60 Kg T 1 (66.29 KiB) Viewed 26 times

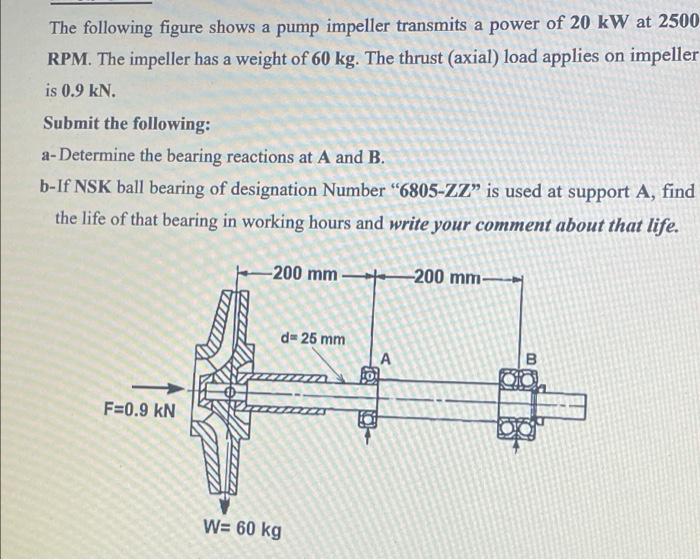

The following figure shows a pump impeller transmits a power of 20 kW at 2500 RPM. The impeller has a weight of 60 kg. The thrust (axial) load applies on impeller is 0.9 kN. Submit the following: a-Determine the bearing reactions at A and B. b-If NSK ball bearing of designation Number "6805-ZZ” is used at support A, find the life of that bearing in working hours and write your comment about that life. -200 mm -200 mm d=25 mm A F=0.9 KN W= 60 kg
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
