1 4 1 Consider The Combinational Circuit Shown In Fig P4 1 Hdl See Problem 4 49 A B D D Figure P4 1 T Ty F Des 1 (27.14 KiB) Viewed 14 times
1 4 1 Consider The Combinational Circuit Shown In Fig P4 1 Hdl See Problem 4 49 A B D D Figure P4 1 T Ty F Des 2 (23.72 KiB) Viewed 14 times

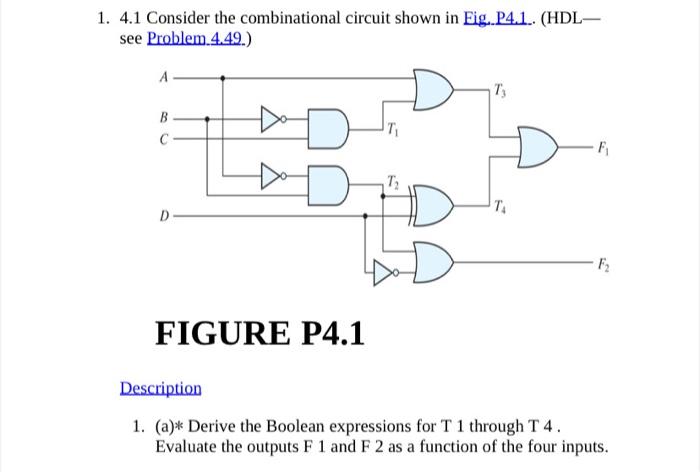

1. 4.1 Consider the combinational circuit shown in Fig. P4.1.. (HDL- see Problem 4.49.) A B D D FIGURE P4.1 T₂ Ty F₂ Description 1. (a)* Derive the Boolean expressions for T 1 through T 4. Evaluate the outputs F 1 and F 2 as a function of the four inputs.

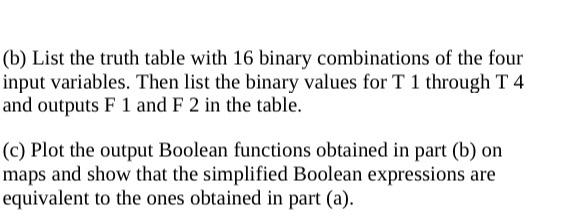

(b) List the truth table with 16 binary combinations of the four input variables. Then list the binary values for T 1 through T 4 and outputs F 1 and F 2 in the table. (c) Plot the output Boolean functions obtained in part (b) on maps and show that the simplified Boolean expressions are equivalent to the ones obtained in part (a).
