Consider the beam shown in (Figure 1). Take www = 2.8 kip/ftkip/ft. Follow the sign convention Determine the normal forc

[answerhappygod]

Consider the beam shown in (Figure 1). Take www = 2.8kip/ftkip/ft. Follow the sign convention
Determine the normal force at point C
Nc=
Part B)
Determine the shear force at point C
Vc=
Part C)
Determine the moment at point C.
Mc=
Part D)
Determine the normal force at point D
Nd=
Part E)
Determine the shear force at point D.
Vd=
Part F)
Determine the moment at point D
Md=

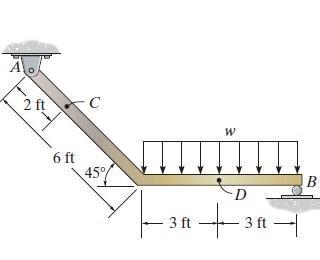

Consider The Beam Shown In Figure 1 Take Www 2 8 Kip Ftkip Ft Follow The Sign Convention Determine The Normal Forc 1 (9.33 KiB) Viewed 15 times

Ao 2 ft C 6 ft 45% W D 1-381 +38-1 ft ft B
