MY NOTES PRACTICE ANOTHER One long wire carries current 38.0 A to the left along the x axis. A second long wire carries

[answerhappygod]

My Notes Practice Another One Long Wire Carries Current 38 0 A To The Left Along The X Axis A Second Long Wire Carries 1 (21.9 KiB) Viewed 11 times

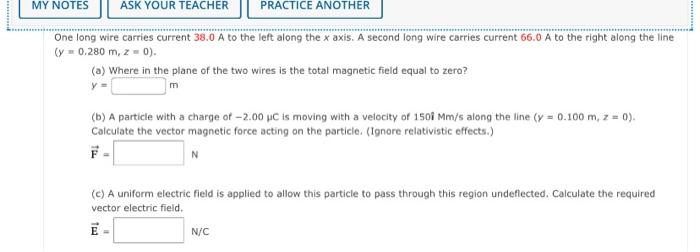

MY NOTES PRACTICE ANOTHER One long wire carries current 38.0 A to the left along the x axis. A second long wire carries current 66.0 A to the right along the line (y = 0.280 m, z = 0). ASK YOUR TEACHER (a) Where in the plane of the two wires is the total magnetic field equal to zero? y = m (b) A particle with a charge of -2.00 µC is moving with a velocity of 1508 Mm/s along the line (y = 0.100 m, z = 0). Calculate the vector magnetic force acting on the particle. (Ignore relativistic effects.) F- N (c) A uniform electric field is applied to allow this particle to pass through this region undeflected. Calculate the required vector electric field. E- N/C
