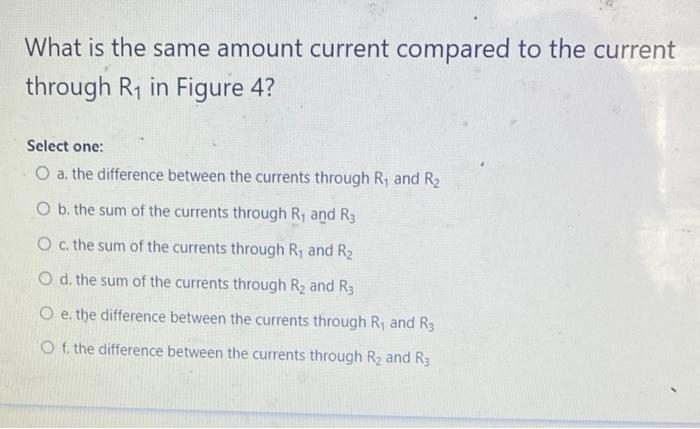

What is the same amount current compared to the current through R₁ in Figure 4? Select one: O a. the difference between the currents through R₁ and R₂ O b. the sum of the currents through R₁ and R3 O c. the sum of the currents through R₁ and R₂ O d. the sum of the currents through R₂ and R3 O e. the difference between the currents through R₁ and R3 O f. the difference between the currents through R₂ and R3

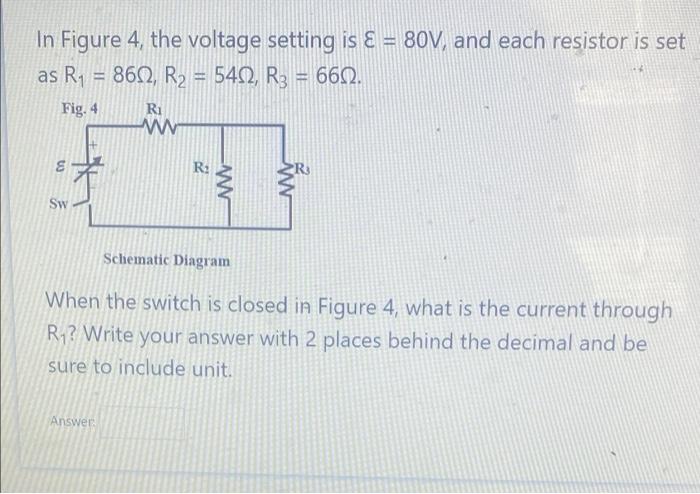

In Figure 4, the voltage setting is E = 80V, and each resistor is set as R₁ = 860, R₂ = 5402, R3 540, R3 = 660. Fig. 4 03 E Sw Ri www Answer 2 R: www w Schematic Diagram When the switch is closed in Figure 4, what is the current through R₁? Write your answer with 2 places behind the decimal and be sure to include unit.
