1. For the following circuit: (Must show all circuit diagrams). a. Find the voltage through all resistors. b. Find the c

[answerhappygod]

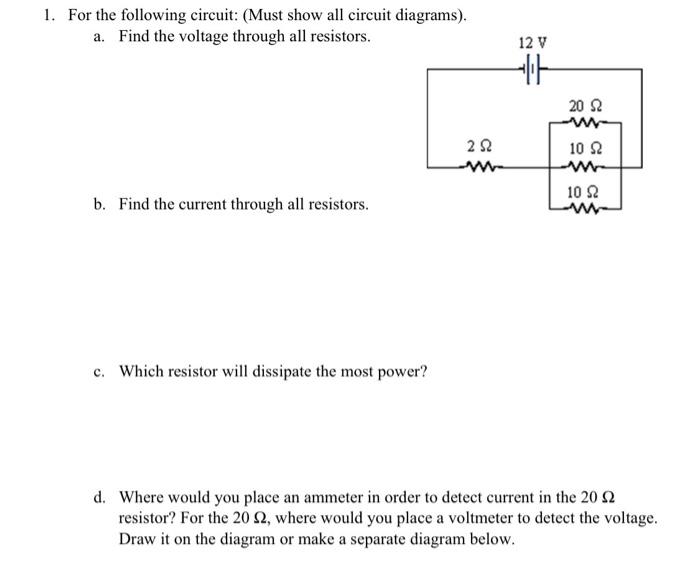

1 For The Following Circuit Must Show All Circuit Diagrams A Find The Voltage Through All Resistors B Find The C 1 (29.89 KiB) Viewed 14 times

1. For the following circuit: (Must show all circuit diagrams). a. Find the voltage through all resistors. b. Find the current through all resistors. c. Which resistor will dissipate the most power? 252 12 V -|| 20 $2 10 Ω 10 Ω www d. Where would you place an ammeter in order to detect current in the 20 52 resistor? For the 20 92, where would you place a voltmeter to detect the voltage. Draw it on the diagram or make a separate diagram below.
