A resistor with R-400 22 and an inductor are connected in series across an AC source that has voltage amplitude of 800 V

Post by answerhappygod »

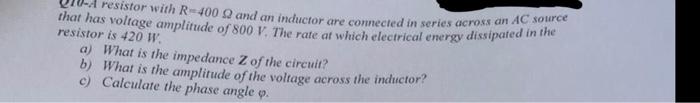

A Resistor With R 400 22 And An Inductor Are Connected In Series Across An Ac Source That Has Voltage Amplitude Of 800 V 1
A Resistor With R 400 22 And An Inductor Are Connected In Series Across An Ac Source That Has Voltage Amplitude Of 800 V 1 (10.9 KiB) Viewed 13 times
A resistor with R-400 22 and an inductor are connected in series across an AC source that has voltage amplitude of 800 V. The rate at which electrical energy dissipated in the resistor is 420 W. a) What is the impedance Z of the circuit? b) What is the amplitude of the voltage across the inductor? c) Calculate the phase angle p.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
