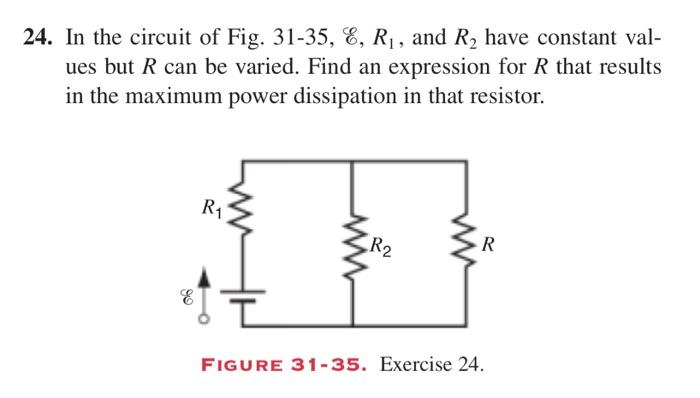

24. In the circuit of Fig. 31-35, 8, R₁, and R₂ have constant val- ues but R can be varied. Find an expression for R that results in the maximum power dissipation in that resistor. E R₁ R₂ R FIGURE 31-35. Exercise 24.
