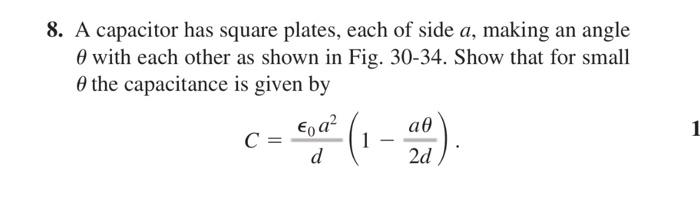

8. A capacitor has square plates, each of side a, making an angle with each other as shown in Fig. 30-34. Show that for small the capacitance is given by C Ea² (1-6) d 2d 1

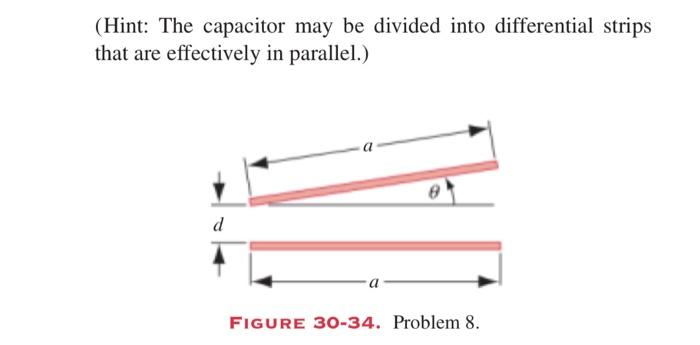

(Hint: The capacitor may be divided into differential strips that are effectively in parallel.) d 0 FIGURE 30-34. Problem 8.
