7 10 A Small Power Plant Is Shown In The Figure Calculate The Power Output Of The Entire Turbine 25 Kg S 600 C 3 Mpa P 1 (89.07 KiB) Viewed 9 times
the answer is supposed to be 26.18 MW, please show your work

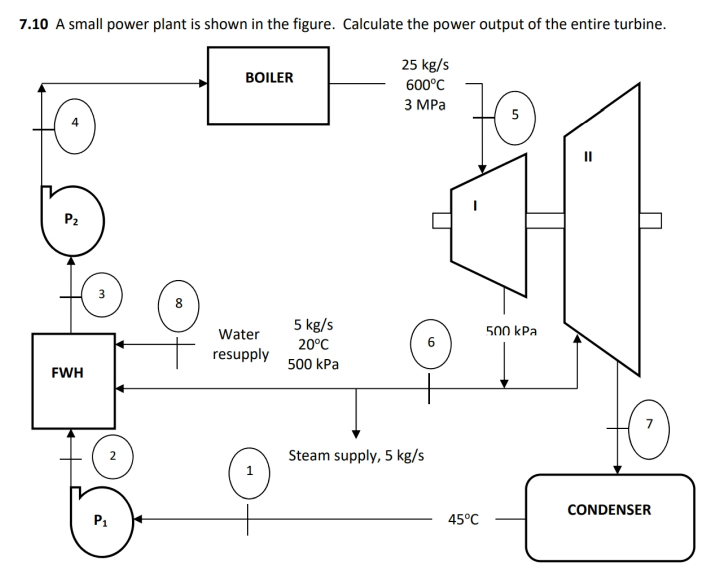

7.10 A small power plant is shown in the figure. Calculate the power output of the entire turbine. 25 kg/s 600°C 3 MPa P₂ FWH W P₁ BOILER Water resupply 5 kg/s 20°C 500 kPa Steam supply, 5 kg/s 6 45°C 500 kPa CONDENSER
