7.9 A standard refrigeration cycle using air is shown in the figure. The compressor raises the input at atmospheric pres

Post by answerhappygod »

7 9 A Standard Refrigeration Cycle Using Air Is Shown In The Figure The Compressor Raises The Input At Atmospheric Pres 1
7 9 A Standard Refrigeration Cycle Using Air Is Shown In The Figure The Compressor Raises The Input At Atmospheric Pres 1 (98.38 KiB) Viewed 11 times

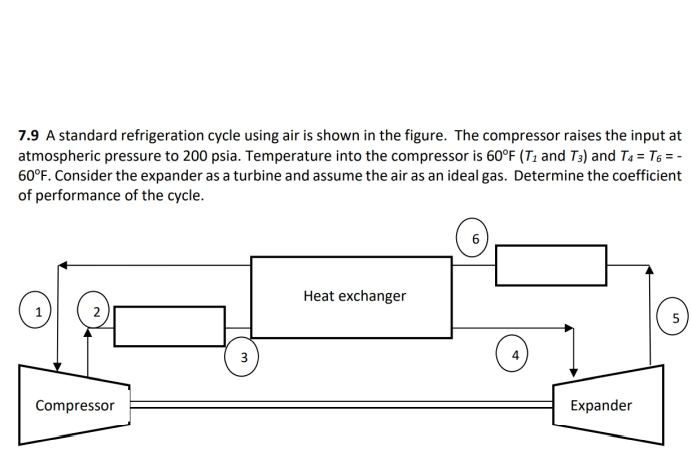

7.9 A standard refrigeration cycle using air is shown in the figure. The compressor raises the input at atmospheric pressure to 200 psia. Temperature into the compressor is 60°F (T₁ and T3) and T4 = T6 = - 60°F. Consider the expander as a turbine and assume the air as an ideal gas. Determine the coefficient of performance of the cycle. 2 Compressor 3 Heat exchanger Expander 5
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
