Answer is given. Please show clear solution. Will leave a thumbsup if complete and clear.

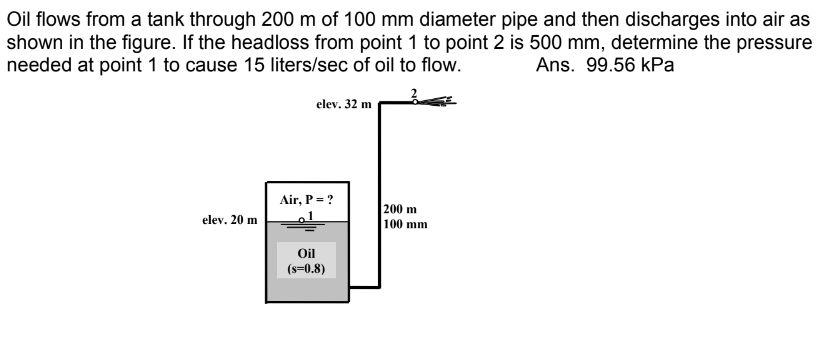

Oil flows from a tank through 200 m of 100 mm diameter pipe and then discharges into air as shown in the figure. If the headloss from point 1 to point 2 is 500 mm, determine the pressure needed at point 1 to cause 15 liters/sec of oil to flow. Ans. 99.56 kPa elev. 20 m elev. 32 m Air, P = ? Oil (s=0.8) 200 m 100 mm
