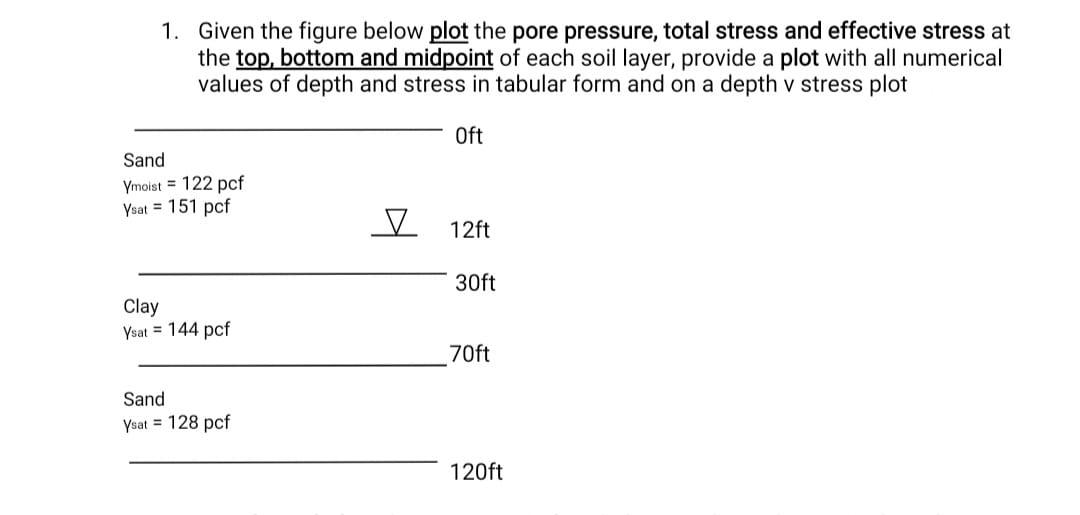

1. Given the figure below plot the pore pressure, total stress and effective stress at the top, bottom and midpoint of each soil layer, provide a plot with all numerical values of depth and stress in tabular form and on a depth v stress plot Oft Sand Ymoist = 122 pcf Ysat = 151 pcf Clay Ysat = 144 pcf Sand Ysat = 128 pcf V 12ft 30ft 70ft 120ft
