STQ1 (10 Marks) The cross-section of the steel bars BE and AD in Figure STQ1 are 6x 18 mm. Determine the deflections of

Post by answerhappygod »

Stq1 10 Marks The Cross Section Of The Steel Bars Be And Ad In Figure Stq1 Are 6x 18 Mm Determine The Deflections Of 1
Stq1 10 Marks The Cross Section Of The Steel Bars Be And Ad In Figure Stq1 Are 6x 18 Mm Determine The Deflections Of 1 (21.04 KiB) Viewed 14 times

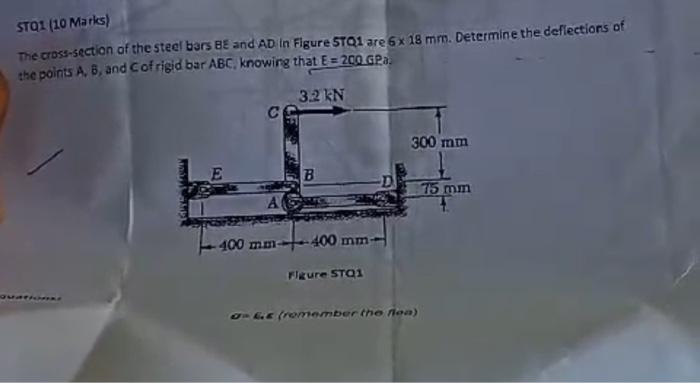

STQ1 (10 Marks) The cross-section of the steel bars BE and AD in Figure STQ1 are 6x 18 mm. Determine the deflections of the points A, B, and C of rigid bar ABC, knowing that E= 200 GPa 3.2 kN B B AGES 400 mm 400 mm- Figure STQ1 300 mm O-LE (remember the floa) 75 mm
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
