Calculate the instantaneous deflection for Dead Load plus live Load. Given: n=8 Icr 1.2 x 10¹0 mm4 fc'=28 MPa fy = 420 M

Post by answerhappygod »

Calculate The Instantaneous Deflection For Dead Load Plus Live Load Given N 8 Icr 1 2 X 10 0 Mm4 Fc 28 Mpa Fy 420 M 1
Calculate The Instantaneous Deflection For Dead Load Plus Live Load Given N 8 Icr 1 2 X 10 0 Mm4 Fc 28 Mpa Fy 420 M 1 (70.82 KiB) Viewed 12 times

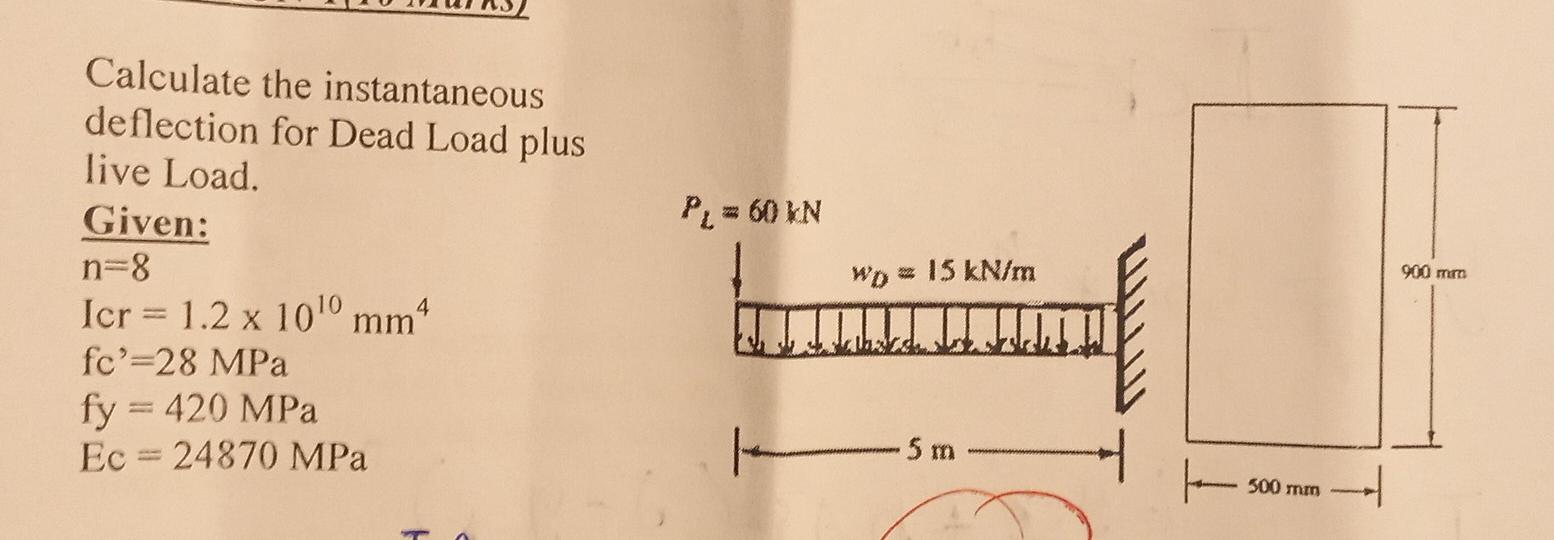

Calculate the instantaneous deflection for Dead Load plus live Load. Given: n=8 Icr 1.2 x 10¹0 mm4 fc'=28 MPa fy = 420 MPa Ec=24870 MPa PL = 60 KN WD = 15 kN/m |—————————— 5 m T 500 mm 900 mm
