(e) A soil profile consists of a clay layer between layers of sand, the water table being in the upper sand layer. Befor

[answerhappygod]

E A Soil Profile Consists Of A Clay Layer Between Layers Of Sand The Water Table Being In The Upper Sand Layer Befor 1 (20.43 KiB) Viewed 19 times

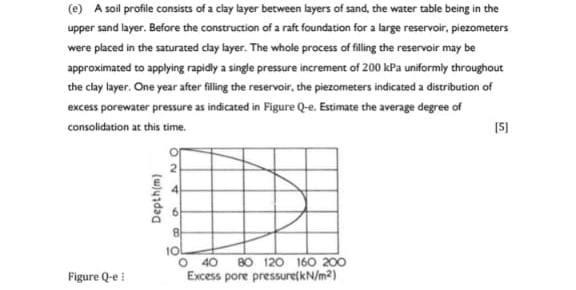

(e) A soil profile consists of a clay layer between layers of sand, the water table being in the upper sand layer. Before the construction of a raft foundation for a large reservoir, piezometers were placed in the saturated clay layer. The whole process of filling the reservoir may be approximated to applying rapidly a single pressure increment of 200 kPa uniformly throughout the clay layer. One year after filling the reservoir, the piezometers indicated a distribution of excess porewater pressure as indicated in Figure Q-e. Estimate the average degree of consolidation at this time. Figure Q-ei Depth (m) 4 8 10 O 40 80 120 160 200 Excess pore pressure[kN/m²) [5]
