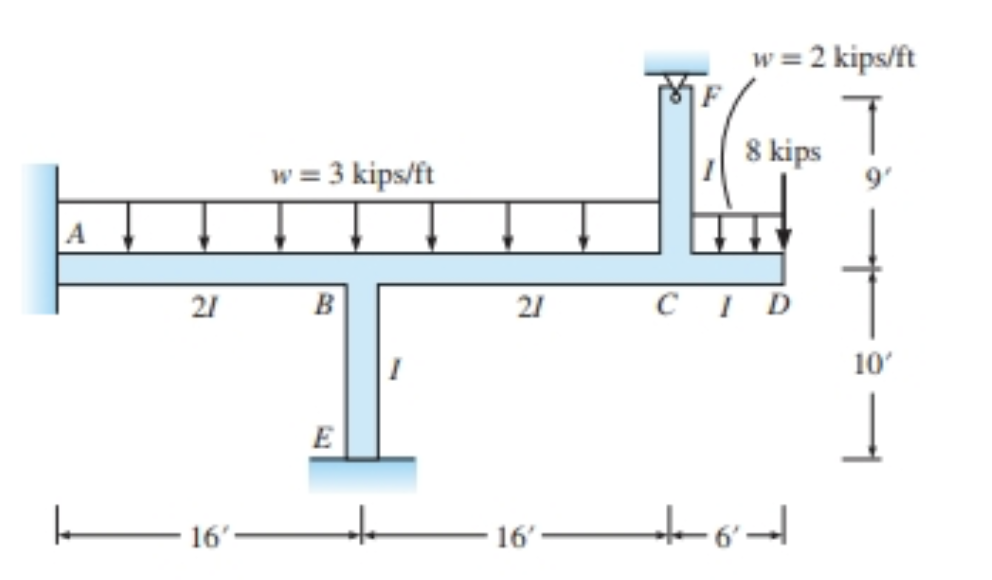

Determine all reactions and draw the shear and momentdiagrams locating points of inflection and labeling values ofmaximum shear and moment in each span. E is constant, but I variesas noted. remove the distributed 2k/ft load on memberCD)
Determine All Reactions And Draw The Shear And Moment Diagrams Locating Points Of Inflection And Labeling Values Of Maxi 1
Determine All Reactions And Draw The Shear And Moment Diagrams Locating Points Of Inflection And Labeling Values Of Maxi 1 (136.02 KiB) Viewed 13 times
21 16' w = 3 kips/ft B E 21 16'- w = 2 kips/ft 8 kips CID +6+ 10'
