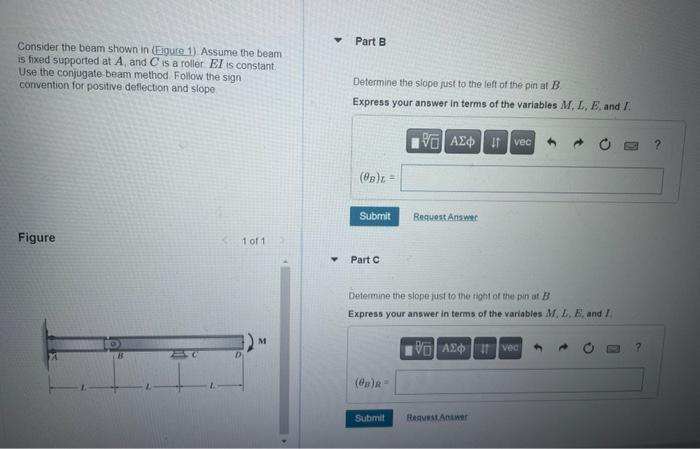

Consider the beam shown in (Eigure 1) Assume the beam is fixed supported at A, and C is a roller. El is constant. Use the conjugate-beam method Follow the sign convention for positive deflection and slope. Figure 1 of 1 M Y Part B Determine the slope just to the left of the pin at B Express your answer in terms of the variables M, L, E, and I. G| ΑΣΦ | | | vec (OB) L = Submit Y Part C Determine the slope just to the right of the pin at B Express your answer in terms of the variables M, L, E, and I. [95] ΑΣΦΠ/vec (On) Request Answer Submit Request Answer ?

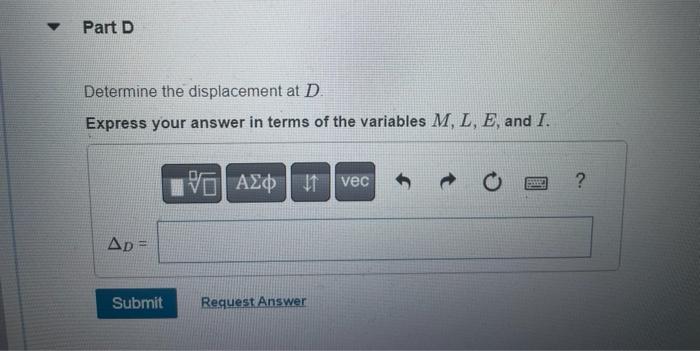

▼ Part D Determine the displacement at D. Express your answer in terms of the variables M, L, E, and I. Ap= Submit 195] V-| ΑΣΦ | Η vec Request Answer
