P2 The frame shown below has a uniform loading of w=12 kN/m applied. B C b b 3 m A 4 m Calculate the average normal stre

Post by answerhappygod »

P2 The Frame Shown Below Has A Uniform Loading Of W 12 Kn M Applied B C B B 3 M A 4 M Calculate The Average Normal Stre 1
P2 The Frame Shown Below Has A Uniform Loading Of W 12 Kn M Applied B C B B 3 M A 4 M Calculate The Average Normal Stre 1 (48.85 KiB) Viewed 20 times

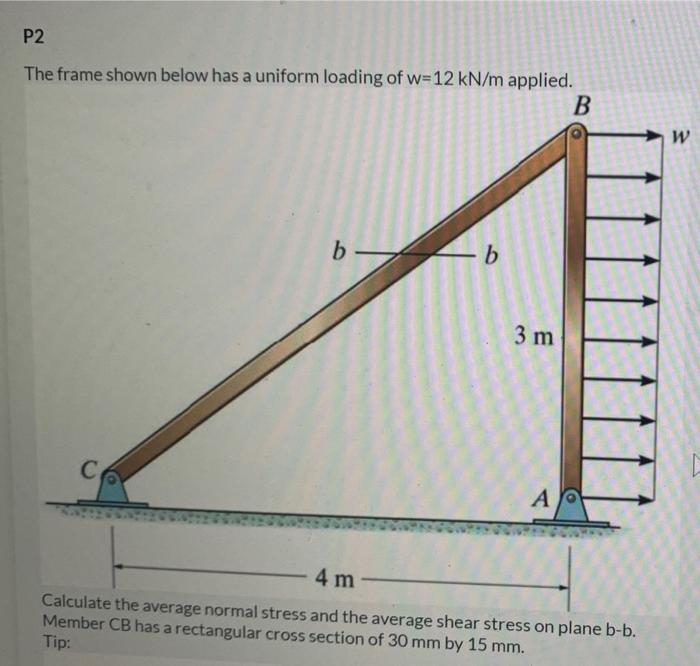

P2 The frame shown below has a uniform loading of w=12 kN/m applied. B C b b 3 m A 4 m Calculate the average normal stress and the average shear stress on plane b-b. Member CB has a rectangular cross section of 30 mm by 15 mm. Tip: W
