alculate the moment of inertia about the x’-x’ axis of this symmetrical concrete I- beam, using units of ft. If the tabl

[answerhappygod]

alculate the moment of inertia about the x’-x’ axis of thissymmetrical concrete I-beam, using units of ft. If the table given helps you solve it,then use it, if not that’s fine, just besure to calculate Ix-x correctly for the three sections shown.

Alculate The Moment Of Inertia About The X X Axis Of This Symmetrical Concrete I Beam Using Units Of Ft If The Tabl 1 (124.02 KiB) Viewed 15 times

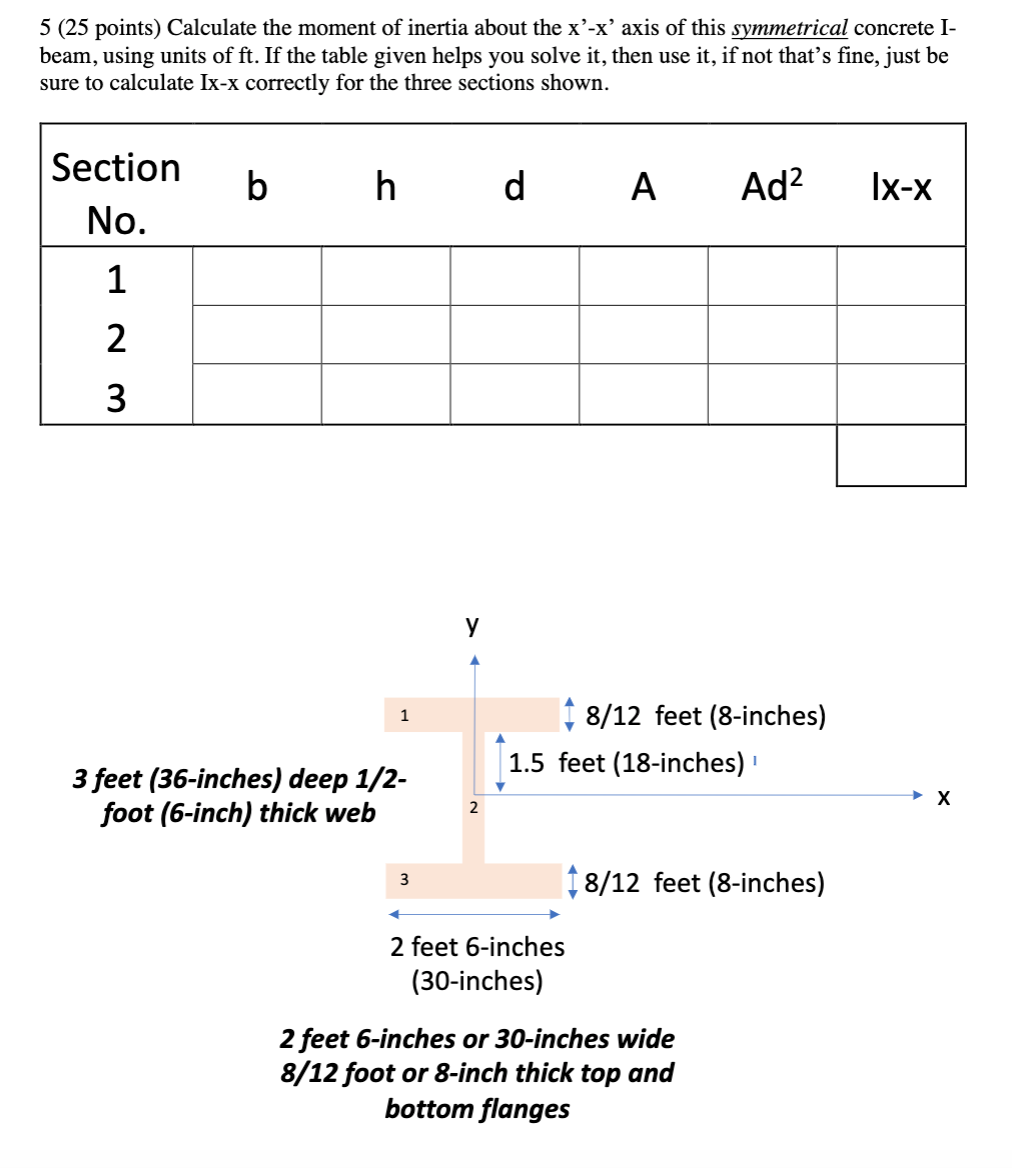

5 (25 points) Calculate the moment of inertia about the x'-x' axis of this symmetrical concrete I- beam, using units of ft. If the table given helps you solve it, then use it, if not that's fine, just be sure to calculate Ix-x correctly for the three sections shown. Section No. 1 2 3 b h 1 3 feet (36-inches) deep 1/2- foot (6-inch) thick web 3 2 d A Ad² 8/12 feet (8-inches) 1 1.5 feet (18-inches) ¹ 8/12 feet (8-inches) ← 2 feet 6-inches (30-inches) 2 feet 6-inches or 30-inches wide 8/12 foot or 8-inch thick top and bottom flanges Ix-x ► X
