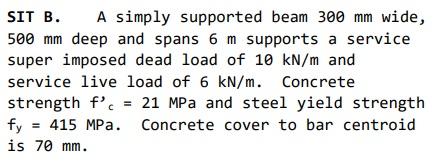

SIT B. A simply supported beam 300 mm wide, 500 mm deep and spans 6 m supports a service super imposed dead load of 10 kN/m and service live load of 6 kN/m. Concrete strength f' = 21 MPa and steel yield strength fy = 415 MPa. Concrete cover to bar centroid is 70 mm.

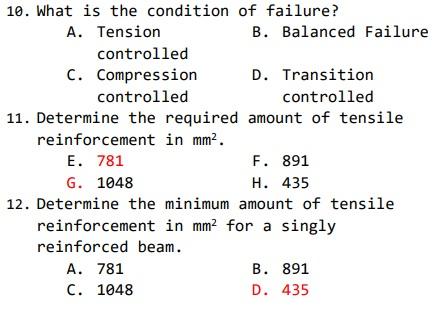

10. What is the condition A. Tension of failure? B. Balanced Failure controlled C. Compression D. Transition controlled controlled 11. Determine the required amount of tensile reinforcement in mm². E. 781 F. 891 G. 1048 H. 435 12. Determine the minimum amount of tensile reinforcement in mm² for a singly reinforced beam. A. 781 C. 1048 B. 891 D. 435
