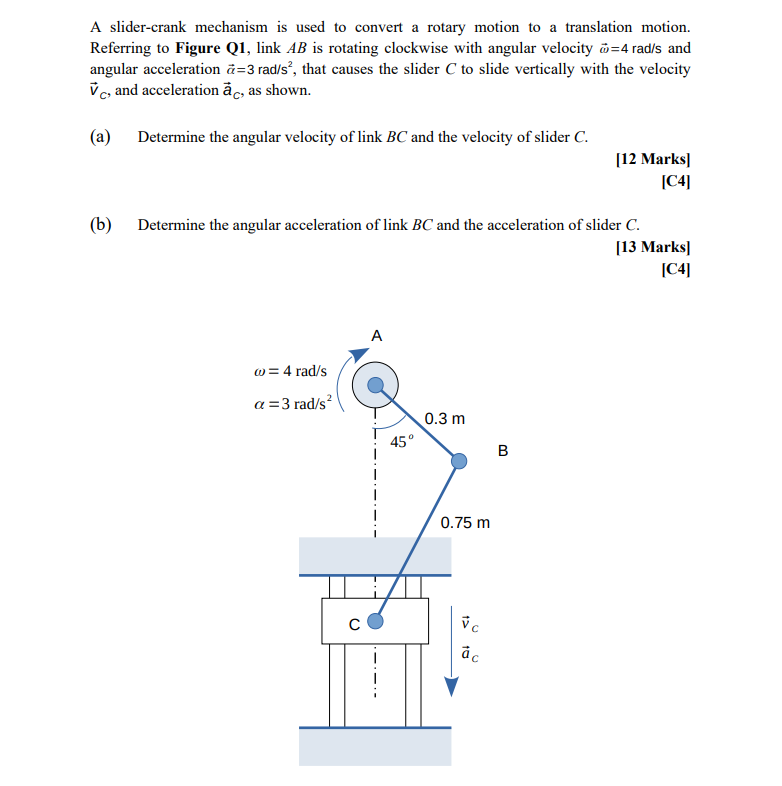

A slider-crank mechanism is used to convert a rotary motion to a translation motion. Referring to Figure Q1, link AB is rotating clockwise with angular velocity =4 rad/s and angular acceleration a=3 rad/s², that causes the slider C to slide vertically with the velocity VC, and acceleration ac, as shown. (a) Determine the angular velocity of link BC and the velocity of slider C. (b) Determine the angular acceleration of link BC and the acceleration of slider C. [13 Marks] [C4] @= 4 rad/s a = 3 rad/s² C A 45° 0.3 m 0.75 m vc 10 [12 Marks] [C4] B
