Nr = 3 bolts

Post by answerhappygod »

Nr = 3 bolts
Nr 3 Bolts 1
Nr 3 Bolts 1 (26.31 KiB) Viewed 22 times
Nr 3 Bolts 2
Nr 3 Bolts 2 (26.31 KiB) Viewed 22 times

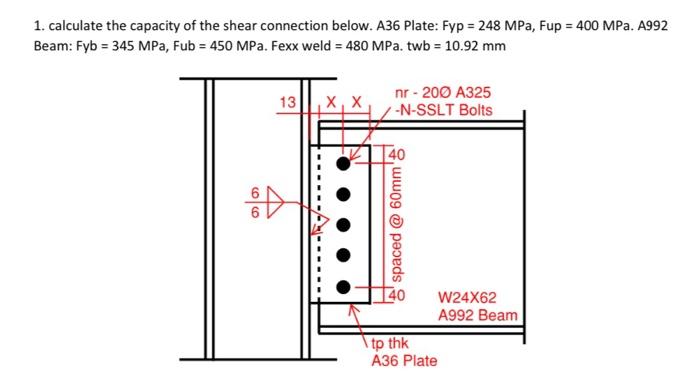

1. calculate the capacity of the shear connection below. A36 Plate: Fyp = 248 MPa, Fup = 400 MPa. A992 Beam: Fyb = 345 MPa, Fub = 450 MPa. Fexx weld = 480 MPa. twb = 10.92 mm 응 13, X, X, nr - 200 A325 -N-SSLT Bolts 40 spaced @ 60mm' W24X62 A992 Beam tp thk A36 Plate
